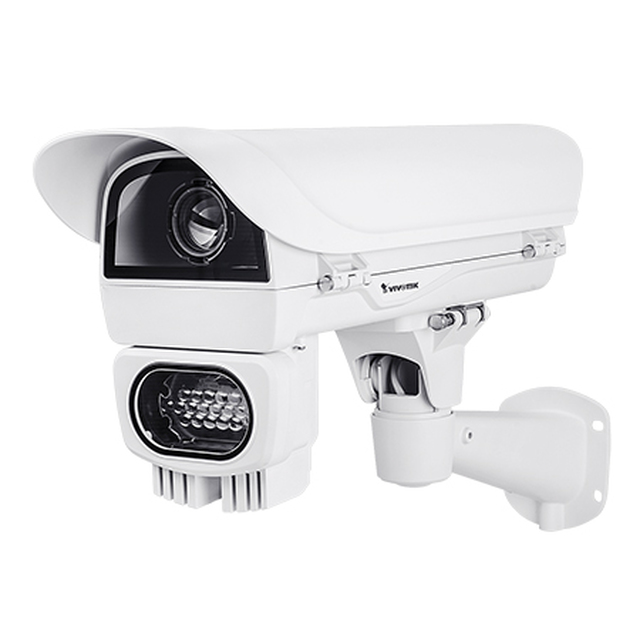

Vivotek AE-23A-wBS Side-Opening AC24V Cast Aluminum Camera Housing, AC
Vivotek AE-23A-wBS Side-Opening AC24V Cast Aluminum Camera Housing, AC
$183.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Side-Opening AC24V Cast Aluminum Camera Housing, AC24V input, Window heater & Blower, IP68, -20~50℃, * Optional 6W and 48W snap VAIR Illuminator and bracket not included
Key Features
Weather-proof IP68-rated Enclosure without Wiper (AE-23A, AE-23E)
•Vandal-proof IK10-rated Cast Aluminum Housing
•Window Demister Heater and Fan
•Adjustable Sunshield
•Side-Opening Alarm Switch
•VAIR Illuminators (Optional)
Specifications
Technical Specifications
- Model
- AE-23A
- Input Voltage
- 24VAC/28VDC
- Max Output Power Budget
- 80W
- Power Consumption
- Window Heater: 10W
- Blower: 2W
- Camera: 6 ~ 8W
- Others: 2W
- Optional Vari IR Illuminators Power consumption
- AI-106 : 6W
- AI-108: 24W
- AI-109: 48W
- Operating Temperature
- -20°C ~ 65°C
- (-4°F ~ 149°F)
- Windows Heater ON/OFF
- ≤ 30°C (86°F) ON
- ≥ 35°C (95°F) OFF
- Cold Start Heater ON/OFF
- Fan ON/OFF
- ≥ 40°C (104 °F) ON
- ≤ 35°C (95 °F) OFF
- Waterproof IP Rating
- IP168
- Vandal Proof
- IK10
- Impact Rated on Cast
- Aluminum Housing
- Supported Cameras
- AII VIVOTEK Box Cameras
- Included Accessories
- Installation Guide
- Screw Kit
- Wall Mount Bracket (AM-21E)*
- Sun Sheild (AE-2S1)
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
