Vivotek AE-23L Side-Opening AC24V Cast Aluminum Camera Housing with Su
Vivotek AE-23L Side-Opening AC24V Cast Aluminum Camera Housing with Su
$248.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description

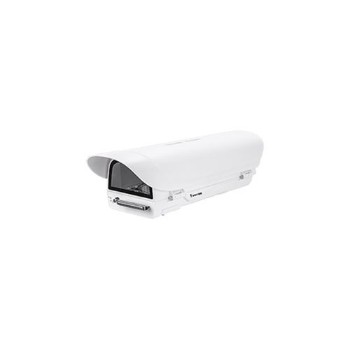

AE-23L: Side-Opening AC24V Cast Aluminum Camera Housing with Sunshield AC24V input,IP68 For 80W LPC Kit
Specifications
Technical Specifications
Product Information
- Model
- AE-23L
- P/N
- 900046401G
- Input Voltage
- 24VAC/DC
- Power Output
- AC/DC 24V*1
DC 12V*1
- Max. Output Power Budget
- 80W
- Optional IR LEDs
- –
- Power Consumption
- Window Heater: 10W
Fan: 2W
Others: 2W
- Optional 10L Water Tank & Pump
- –
- Operating Temperature
- -20°C ~ 65°C (-4°F ~ 149°F)
- Windows Heater ON/OFF
- ≤ 30°C (86°F) ON
≥ 35°C (95°F) OFF
- Cold Start Heater ON/OFF
- –
- Fan ON/OFF
- ≥ 40°C (104 °F) ON
≤ 35°C (95 °F) OFF
- Waterproof IP Rating
- IP68
- Vandal Proof
- IK10
Impact Rated on Cast
Aluminum Housing
- Warranty
- 12 months
- Supported Cameras
- IP9165-LPC
- Included Accessories
- Quick Installation Guide
Screw Kit
Sun Shield (AE-2S1)
- Mount Type
- Wall Mount
Ceiling Mount
Corner Mount
Standing Mount
- Optional Accessories
- Wall Mount Bracket: AM-21D, AM-21E
Ceiling Mount Bracket: AM-11F
Standing Mount Bracket: AM-811
Pole Mount Bracket: AM-314, AM-315, AM-414, AM-21D/AM-21E + AM-314/AM-315
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
