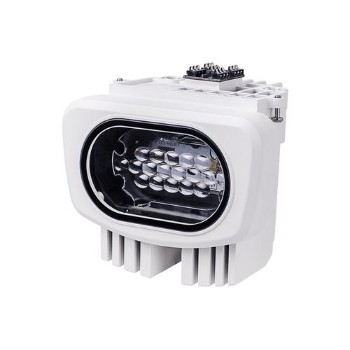

Vivotek AI-109 Snap 850nM IR LED illuminator 48W Vari Angle: 10~30°,
Vivotek AI-109 Snap 850nM IR LED illuminator 48W Vari Angle: 10~30°,
$253.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
AI-109: snap 850nM IR LED illuminator 48W Vari Angle: 10~30°, IR Distance: 120-200 M
Specifications
- Model
- AI-109
- P/N
- 900046100G
- Beam Angle (Horizontal)
- 10° ~ 30° (adjustable by DIP switch or RS-485)
- Distance
- 150 ~ 350 m
- Beam Pattern
- Elliptical
- LED Array
- 18 pcs High Power LED
- Wavelength
- 850nm
- Digital Input
- IR ON/OFF control
- Digital Output
- Trigger by Light Sensor
- Light Sensor Sensitivity
- 100 Lux (Adjustable via RS-485 control)
- Power Consumption
- 48W
- Connector
- ITB Touch Board
- Dimensions
- 135 (L) x 106 (W) x 111 (H) mm
- Weight
- 1.2 kg
- Operating Temperature
- -40°C ~ 50°C (-40°F ~ 122°F)
- Storage Temperature
- -40°C ~ 70°C (-4°F ~ 158°F)
- Supported Enclosures
- AE-23A, AE-23B, AE-23C, AE-23D, AE-23E, AE-23F
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
