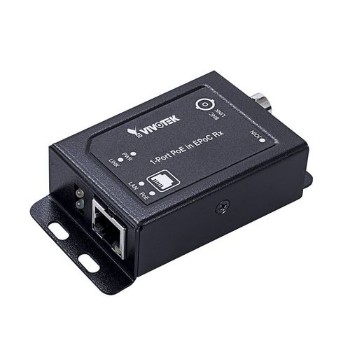

Vivotek AP-FEX-0100-R EPoC Rx Module, Input: DC 56V, 1x BNC, 1x FE RJ4

Vivotek AP-FEX-0100-R EPoC Rx Module, Input: DC 56V, 1x BNC, 1x FE RJ4

$130.00

Add to Wishlist

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
SKU: VIVOTEK:AP-FEX-0100-R Category:

Product Description

EPoC Rx Module, Input: DC 56V, 1x BNC, 1x FE RJ45, 1 DC Jack, -20ﾟC~60ﾟC

Key Features

  • Extend Ethernet and Power up to 1,200m (3,937 ft) over RG6 Coaxial Cable
  • Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy
  • Support Daisy Chain Topology up to 4 IEEE 802.3af Camera
  • Easy Installation for A Smooth Transition from Legacy to IP Camera
  • Both Wall Mount and Rackmount Supported

Specifications

Technical Specifications

Model
AP-FEX-0100-R
Product Description
1 Port EPoC PoE in Rx Module
BNC Port (75Ω)
1
Ethernet Port
1 x 10/100Mbps RJ45
Transmission Mode
Rx
Max. PoE Distance (RG6)
1.2km/8W
Max. Ethernet Distance (RG6)
2.4 km
Power Input
PoE input up to 95w
Power Consumption
2W
PoE Standard
802.3 at/af
Dimensions
85.4 (D) x 47.1 (W) x 23 (H) mm
Weight
0.2kg (0.44lb)
Operating Temperature
-20˚C ~ 60˚C (-4˚F ~ 140˚F)
Storage Temperature
-20˚C ~ 85˚C (-4˚F ~ 185˚F)
Operating Humidity
5% ~ 95% non-condensing
Safety Certifications
CE, FCC, VCCI, LVD
Note
VIVOTEK’s EPoC Rx modules are only compatible with EPoC Tx modules.
