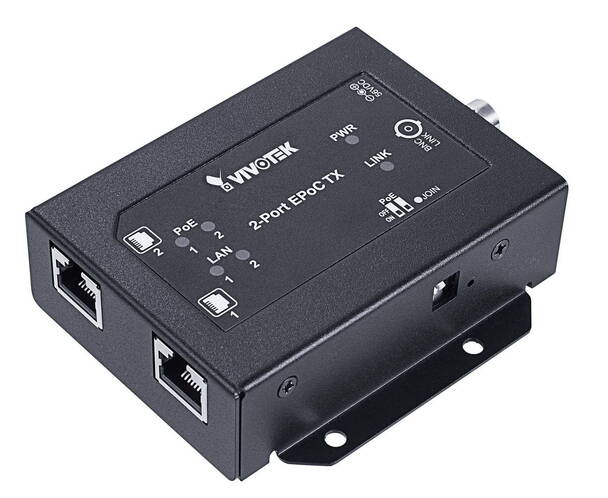

Vivotek AP-FEX-0200-T Outdoor Ethernet Power over Coaxial TxModule,2xB
Vivotek AP-FEX-0200-T Outdoor Ethernet Power over Coaxial TxModule,2xB
$130.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Outdoor Ethernet Power over Coaxial TxModule,2xBNC,1xFE RJ45, -40ﾟC~60ﾟC, IP67, IK10
Key Features
- Extend Ethernet and Power up to 1,200m (3,937 ft) over RG6 Coaxial Cable
- Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy
- Support Daisy Chain Topology up to 4 IEEE 802.3af Camera
- Easy Installation for A Smooth Transition from Legacy to IP Camera
- Both Wall Mount and Rackmount Supported
Specifications
Technical Specifications
- Model
- AP-FEX-0200-T
- Product Description
- 2 Ports EPoC Tx Module
- BNC Port (75Ω)
- 1
- Ethernet Port
- 2 x 10/100Mbps RJ45
- DC Jack
- 1
- PoE On/Off Switch
- 2
- Transmission Mode
- Tx
- Max. PoE Distance (RG6)
- 500m/8W
- Max. Ethernet Distance (RG6)
- 2.4 km
- Power Input
- DC 56V
- Power Consumption
- 2W
- PoE Standard
- 802.3 at/af
- Dimensions
- 105.2 (D) x 86.4(W) x 28.0 (H) mm
- Weight
- 0.26kg (0.57lb)
- Operating Temperature
- -20˚C ~ 60˚C (-4˚F ~ 140˚F)
- Storage Temperature
- -20˚C ~ 85˚C (-4˚F ~ 185˚F)
- Operating Humidity
- 5% ~ 95% non-condensing
- Safety Certifications
- CE, FCC, VCCI
- Note
- VIVOTEK’s EPoC Rx modules are only compatible with EPoC Tx modules.
