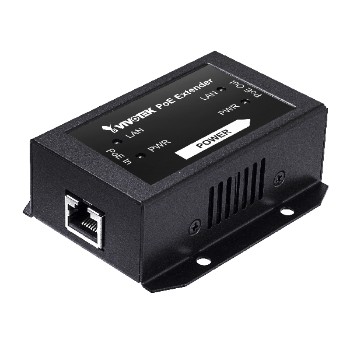

Vivotek AP-FXC-0110 1-port Indoor 95/60/30 W PoE Extender, Supports: P
Vivotek AP-FXC-0110 1-port Indoor 95/60/30 W PoE Extender, Supports: P
$71.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
1-port Indoor 95/60/30 W PoE Extender Supported PSEs providing 95W/60W/30W PoE 0 C ~ 50 C
Technical specifications
- Model
- AP-FXC-0110
- List of Compatible Cameras
- VIVOTEK Network Cameras
Power specifications
- Extension distance
- 2 Units, Daisy chain installation up to 300M Extension
(No local power required)
- PoE Input Power
- 95W / 60W / 30W PoE
- PoE output power
- 48 ~ 55VDC, Max. 70W
- PD Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PSE Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- Fast Ethernet (RJ45) PD
- 1
- Fast Ethernet (RJ45) PSE
- 1
- Dip Switch for PoE On / Off
- Supported
Network Specifications
- Total Fast Ethernet Ports
- 2
- MAC table
- 2K
- Bandwidth
- Max. 100 Mbps
- Switching capacity
- 1 Gbps
- Auto-MDI / MDI-X, Auto-Negotiation
- Supported
Mechanical Specifications
- Dimensions (W x H x D)
- 87.72 x 69.4 x 31 mm
- Weight
- 0.21 kg
- LED indicator
- Power, LAN, PoE
Environmental Specifications
- Operating temperature
- 0 ° C ~ 50 ° C (32 ° F ~ 122 ° F)
- Storage temperature
- -20 ° C ~ 70 ° C (-4 ° F ~ 158 ° F)
- Operating humidity
- 10 ~ 90% (non-condensing)
Certifications
- EMC
- CE, FCC, VCCI, C-Tick
- Security
- EN60950-1, IEC60950-1
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
