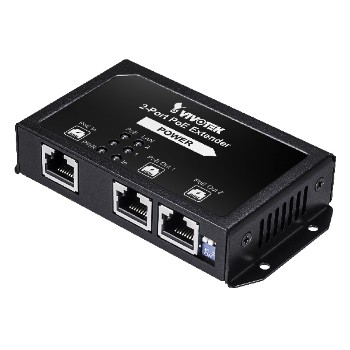

Vivotek AP-FXC-0210 2-port Indoor 95/60/30 W PoE Extender, Supports: P
Vivotek AP-FXC-0210 2-port Indoor 95/60/30 W PoE Extender, Supports: P
$89.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
AP-FXC-0210: 2-port Indoor 95/60/30 W PoE Extender Supported PSEs providing 95W/60W/30W PoE 0 C ~ 50 C
Technical Specifications
- Model
- AP-FXC-0210
- Compatible Camera List
- VIVOTEK Network Cameras
Power Specifications
- Extension Distance
- 2 Units, Daisy-chain Installation up to 300M Extension
(No Local Power Required)
- PoE Input Power
- 95W/60W/30W PoE
- PoE Output Power
- 48~55VDC, Max. 70W
- PD Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PSE Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PD Fast Ethernet (RJ45)
- 1
- PSE Fast Ethernet (RJ45)
- 2
- PSE Power On/Off Dip Switch
- Supported
Networking Specifications
- Total Fast Ethernet Port
- 3
- Mac Table
- 2K
- Bandwidth
- Max. 100 Mbps
- Switching Capacity
- 1 Gbps
- Auto-MDI/MDI-X, Auto-Negotiation
- Supported
Mechanical Specifications
- Dimensions (W x H x D)
- 108 x 58 x 22 mm
- Weight
- 0.19 kg
- LED Indicators
- Power, LAN, PoE
Environmental Specifications
- Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
- Operating Humidity
- 10 ~ 90% (non-condensing)
Certifications
- EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN60950-1, IEC60950-1
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
