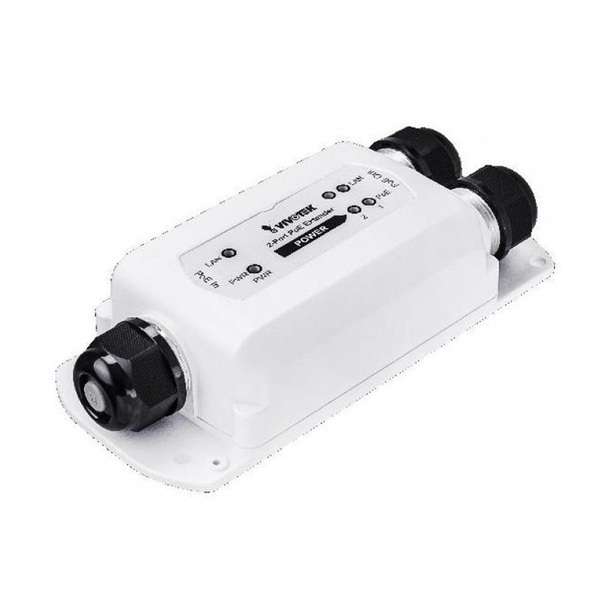

Vivotek AP-FXC-0260 2-port Outdoor 95/60/30 W PoE Extender, Supports:
Vivotek AP-FXC-0260 2-port Outdoor 95/60/30 W PoE Extender, Supports:
$130.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
AP-FXC-0260: 2-port Outdoor 95/60/30 W PoE Extender; IP67 Supported PSEs providing 95W/60W/30W PoE -40 C~ 85 C
Specifications
Technical Specifications
- Model
- AP-FXC-0260
- Compatible Camera List
- VIVOTEK Network Cameras
Power Specifications
- Extension Distance
- 2 Units, Daisy-chain Installation up to 300M Extension
(No Local Power Required)
- PoE Input Power
- 95W/60W/30W PoE
- PoE Output Power
- 48~55VDC, Max. 70W
- PD Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PSE Power Pin Assignment
- 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PD Fast Ethernet (RJ45)
- 1
- PSE Fast Ethernet (RJ45)
- 2
- PSE Power On/Off Dip Switch
- Supported
- Surge Protection/Each PoE Port
- 6KV
Networking Specifications
- Total Fast Ethernet Port
- 3
- Mac Table
- 2K
- Bandwidth
- Max. 100 Mbps
- Switching Capacity
- 1 Gbps
- Auto-MDI/MDI-X, Auto-Negotiation
- Supported
Mechanical Specifications
- Dimensions (W x H x D)
- 157.3 x 72.8 x 39.8 mm
- Weight
- 0.36 kg
- LED Indicators
- Power, LAN, PoE
Environmental Specifications
- Waterproof Rating
- IP67
- Vandal Proof
- IK10
- Operating Temperature
- -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity
- 10 ~ 90% (non-condensing)
Certifications
- EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN60950-1, IEC60950-1
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
