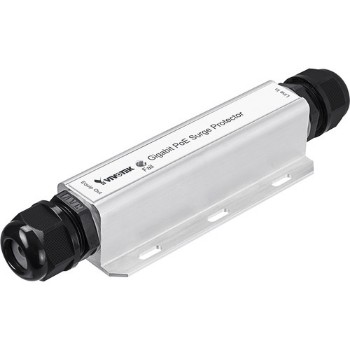

Vivotek AP-PSP-050 Outdoor PoE Surge Protector, 16KV surge, Operating
Vivotek AP-PSP-050 Outdoor PoE Surge Protector, 16KV surge, Operating
$71.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
AP-PSP-050: Outdoor PoE Surge Protector 16KV surge Operating temperature from -40 C to 85 C
Technical Specifications
- Model
- AP-PSP-050
- Number of Ports
- 2
- Pass Through Data Rates
- 10/100/1000 Mbps
- Max Discharge Current (8/20us, 1KA per Line)
- 8KA, 16KV
- Maximum Operation DC Voltage
- 60VDC
- Maximum Operation DC Current
- 1A for 2 pair, 2A for 4 pair, Max. 95W
- Common Mode Protection Level (10/700us)
- 20KV
- Differential Mode Protection Level (10/700us)
- 4KV
- Clamping Voltage (Line to GND)
- 600V
- Clamping Voltage (Line to Line)
- 20V
- Insertion Loss @ 10MHz/100MHz
- 1 dB
- Return Loss @ 10MHz/100MHz
- -20 dB
- Response Time
- 5ns
Mechanical Specifications
- Dimensions
- 186.2 (L) x 50 (W) x 32 (H) mm
- Weight
- 0.27 kg
- Connectors
- PG16(RJ45) x2
Environmental Specifications
- MTBF
- 1,132,887 hours
- Waterproof Rating
- IP67
- Operating Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity
- 5 ~ 95% (non-condensing)
Certifications
- EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN60950-1, IEC60950-1
- Surge
- ITU-T K.21, IEC-61643-21, IEC-61000-4-5, TIA-968-A (FCC Part68)
General
- Warranty
- 12 Months
- Note
- *The warranty does not cover damage resulting from lightning strikes.
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
