Vivotek AT-PSP-001 PoE Surge Protector: 8-10KA. Surge protection devic
Vivotek AT-PSP-001 PoE Surge Protector: 8-10KA. Surge protection devic
$42.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description

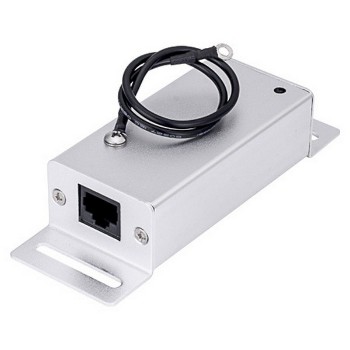

AT-PSP-001: PoE Surge Protector: 8-10KA AT-PSP-001 is a surge protection device to provide Signal/Power path and surge protection capability. It employed our patented surge blocker with shunt devices and parallel devices to guarantee the safety of your device, even there is no secondary protection on your board. Additionally, the operation indicator will turn on while protector being out of life.
Technical Specifications
- Model
- AT-PSP-001
- Maximum Operation DC Voltage
- 60V
- Maximum Operation DC Current
- 1A for 2 pair, 2A for 4 pair
- Common Mode Protection Level (10/700us)
- 20KV
- Differential Mode Protection Level (10/700us)
- 4KV
- Clamping Voltage (Line to GND)
- 600V
- Clamping Voltage (Line to Line)
- 20V
- Insertion Loss @ 10MHz/100MHz
- 1dB
- Return Loss @ 10MHz/100MHz
- -20dB
- Response Time
- 5 ns
- Warranty
- 12 Months
- Note
- *The warranty does not cover damage resulting from lightning strikes.
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
