Vivotek AT-SWH-000 Power Safety Kit (100~275VAC): 20-40KA for Vivotek
Vivotek AT-SWH-000 Power Safety Kit (100~275VAC): 20-40KA for Vivotek
$148.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description

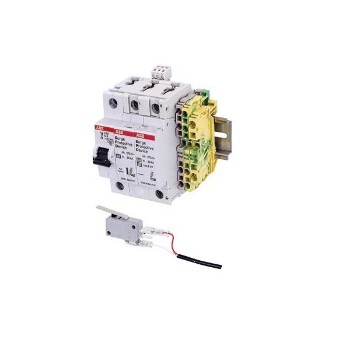

AT-SWH-000: Power Safety Kit (100~275VAC): 20-40KA Electrical safety kit for Vivotek Cabinet in countries where the mains power is 275V AC. Included products: Surge protector class 2, Fuse/main switch, terminal blocks and an intrusion door switch.
Specifications
Technical Specifications
- Model
- AT-SWH-000
- Supported Models
- AT-CAB-001, AT-CAS-001
- Feature
- Suitable for VIVOTEK AT-CAB-001 or AT-CAS-001 Cabinet
Surge protection
Fuse
Alarm-door switch
- Operating Temperature
- MCB fuse: -40°C ~ 75°C (-40°F ~ 167°F)
Surge protector: -40°C ~ 80°C (-40°F ~ 176°F)
Door switch: -40°C ~ 85°C (-40°F ~ 185°F)
- Approvals
- MCB fuse: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Surge protector: IEC 61643-11 / EN 61643-11
Door switch: EN 61058, UL 61058
- Weight
- MCB fuse: 125 g
Surge protector: 240g
Door switch: 10 g
- Dimensions
- MCB fuse: 88 x 17.5 x 69 mm
Surge protector: 95 x 35.6 x 58 mm
Terminal block 4 x 2.5 mm² (Gray): 72.6 x 5.1 x 35.5 mm
Terminal block 4 x 2.5 mm² (Yellow/Green): 72.6 x 5.1 x 35.5 mm
Terminal block 2 x 4 mm² (Yellow/Green): 57 x 6.1 x 35.5 mm
Door switch: 41 x 10 x 30 mm
Door switch cable: 300 mm
Screw: 75 mm
- Included Accessories
- MCB fuse, surge protector type 2, terminal block 4 x 2.5 mm² (gray), terminal block 4 x 2.5 mm² (yellow/green), terminal block 2 x 4 mm² (yellow/green), door switch, door switch cable, screw
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
