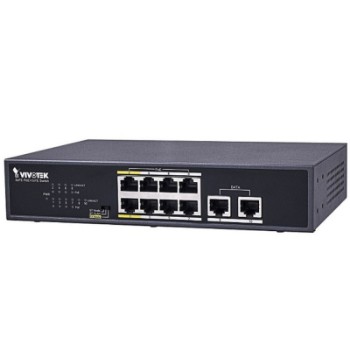

Vivotek AW-FET-100C-120 Unmanaged PoE Switch (120W). 8xFE POE+2FE UTP
Vivotek AW-FET-100C-120 Unmanaged PoE Switch (120W). 8xFE POE+2FE UTP
$89.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Unmanaged PoE Switch (120W). 8xFE POE+2FE UTP
Technical Specifications
- Model
- AW-FET-100C-120
- Short Highlight
- 8xFE PoE + 2xFE UTP
Networking Specifications
- 10/100Mbps RJ45 PoE Port
- 8
- 10/100Mbps RJ45 Port
- 2
- 10/100/1000Mbps RJ45 Port
- –
- Gigabit SFP Slot
- –
- Gigabit RJ45/SFP Combo Ports
- –
- EX Mode PoE (200M@10Mbps)
- 2
* EX Mode:
1. CAT.6 or better UTP/STP cable is highly recommended.
2. Low quality cables will seriously limit the cabling distance.
3. Ex mode doesn’t support with the FE8391-V model.
- VLAN Mode
- Supported
Ethernet Performance
- Switching Capacity
- 2 Gbps
- Mac Table
- 2 K
- Jumbo Frame
- 1536 Bytes
- Auto-MDI/MDI-X, Auto-Negotiation
- Supported
Power Specifications
- Power Input Voltage
- 100VAC ~ 240VAC
- Max. PoE Output Power
- Per Port 54VDC, Max. 30W
- Total PoE Power Budget
- 120W
- IEEE 802.3af/at
- Supported
- Power Pin Assignment
- 1/2(+), 3/6(-)
- PoE PD Auto Detection
- Supported
- Surge Protection/Each PoE Port
- 4 KV
- Surge Protection for AC Power
- 4 KV
General
- Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
- Operating Humidity
- 10% ~ 90% non-condensing
- Dimensions
- 220 (L) x 150 (W) x 44 (H) mm
- Weight
- 1.2 kg
Certifications
- EMC
- CE, FCC, VCCI, C-Tick Class A
- Safety
- EN60950-1, IEC60950-1
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
