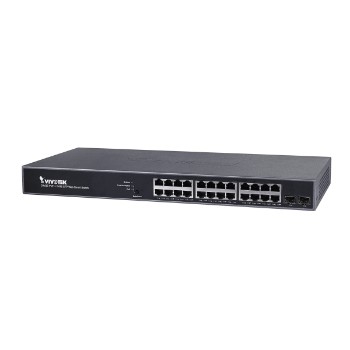

Vivotek AW-GEV-264B-370 24xGE PoE + 2xGE SFP VivoCam Web Smart Managed
Vivotek AW-GEV-264B-370 24xGE PoE + 2xGE SFP VivoCam Web Smart Managed
The AW-GEV Web Smart series is a VivoCam web smart managed PoE switch, combining powerful web smart managed features with graphic view functions, providing better functionality and usability. With single AW-GEV Web Smart series allows users to find all network devices and deploy a network system automatically. The AW-GEV Web Smart series also provides high performance HW and environmental flexibility for SMBs and Enterprises. In addition, embedded surveillance features Graphic Views, such as Topology View/Floor View/Map View for managing, controlling and understanding network structure and device status, as well as Google Map integration to view system status for outdoor applications. The device status and traffic monitoring functions also help users clarify and troubleshoot any connection or device issues. The AW-GEV Web Smart series is ideal for delivering management simplicity, better user experience, and lowering total cost of ownership.
$471.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Key Features:
- Auto Discovery and Classification of Network Devices
- Batch Camera Configuration-File Import & Export
- Batch Camera Network/Login Configuration
- Auto Generated Surveillance Topology View
- Easy Tag VLAN Configuration in Topology View
- Smart Device-Management in Topology View
- PoE On/Off Control in Topology View
- Display IP Camera Live Stream in Topology View, Floor View and Google Map View
Auto Discovery
The AW-GEV Web Smart series can automatically discover VIVOTEK’s devices such as network cameras, video servers and NVR’s with a simple click of the mouse.
Topology View
Auto-generated Topology View allows administrators to quickly view and export a complete network topology in SVG/PNG/PDF format for easier inspection and planning.
Floor View
Upload custom floor images. Floor View allows for quick locations of deployed surveillance devices and for export of this view in SVG/PNG/PDF format for easier inspection and planning.
Google Map View
Locate surveillance devices on Google map to simplify multisite management of any large scale deployments.
Device Management
Easy network configuration, open camera Web UI, diagnose camera connection and cable status, display camera live stream, change camera network setting, restore default, PoE consumption, and PoE on/off control.
Device Status
Device Status page to show the real-time verification result of each connection between switch port and surveillance device.
VLAN Setting
Hierarchical topology view allows administrators to easily build a VLAN.
Live Streaming
Display camera live streaming in Topology View, Floor View and Google Map View.
Technical Specifications
Model
AW-GEV-264B-370
Port Configuration
10M/100M/1G RJ45 Port: 24
100M/1G SFP Port: 2
Total Ports: 26
HW Performance
Switching Bandwidth: 52Gbps
Buffer Memory: 4.1Mb
MAC Address: 8K
Jumbo Frames: 10000 Bytes
Managing IP Surveillance Functions
Management
Auto Search VIVOTEK: up to 256 pcs
Surveillance Device Management List
DHCP Server Function
VIVOTEK Device Account/ Password Setting
VIVOTEK Device Static IP Setting
VIVOTEK Device Grouping Setting for VLAN
VIVOTEK Device Name Edit
VIVOTEK Camera/Video Server Reboot/Restore Default
VIVOTEK Device Re-direct Link
VIVOTEK Device On/Off Line Status
E-Map View Topology View
Floor View
Google Map View
Maintenance VIVOTEK Camera/Video Server Configuration File Export/Import
VIVOTEK Cameras/Video Server Configuration File
Management
Floor Image Managemen
Export Surveillance Management Device List
Security
Trouble Shooting
Traffic Monitoring
VLAN
802.1Q Tag-based VLAN: 4096 VLAN IDs
Port-based VLAN
Private VLAN Edge (PVE)
GARP VLAN
Q-in-Q (Double Tag)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
IP Subnet-based VLAN
Multicast VLAN Registration (MVR)
IGMP Snooping (v1/v2/v3)
DHCP Relay
MLD v1/v2 Snooping
QoS Functions Hardware Queues: 8
Classification Port Based V
802.1p
Rate Limiting
Ingress
Egress
Per Port
Priority Queue Scheduling
WRR
DSCP & Class of Service
Security
IEEE802.1x
RADIUS Authntication
IGMP-RADIUS Based
Secure Sockets Layer (SSL)
Port Security
IP Source Guard
Storm Control
Layer 2 Isolation Private VLAN Edge (PVE) RADIUS/TACACS+
Loop Detection
DHCP Snooping
Management
SNMP (v1, v2c, v3)
RMON (1,2,3 & 9 groups)
DHCP Server & Client
Port Mirroring
UPnP
LLDP (IEEE802.1ab)
LLDP-MED
S-Flow
Firmware Upgrade
NTP
PoE Management
PoE On/Off Control
PoE Alive Checking for PD
PoE Scheduling
Power Delay
PoE Functions
IEEE 802.3af/at PoE
Standard Compliant
Number of PoE Output Port: 24
PoE output Power: Per Port 54VDC, Max. 30W
Total PoE Power Budget: 370W
PoE Pin Assignment: 1/2(+), 3/6(-)
Surge Protection: Per PoE Port 6KV
Environmental Specifications
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity: 10 ~ 90% RH
Mechanical Specifications
Dimensions: 442 (W) x 44 (H) x 211(D) mm
Weight: 3.1 kg
Power Source
AC Input: 100V ~ 240V
Frequency: 50 ~ 60 Hz
Power Consumption: 430W
General
Warranty: 24 months
Certifications
Certifications: CE, FCC, LVD, VCCI, C-Tick
Accessories
Included Accessories:
Power Cord, QIG, CD
Manual, Rack Mount Kit
