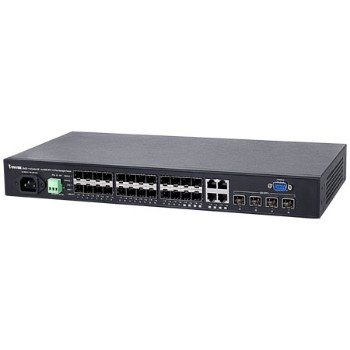

Vivotek AW-GTS-287A 24xGE SFP + 4xCombo GE + 4x 10G SFP+ L2 Plus Manag
Vivotek AW-GTS-287A 24xGE SFP + 4xCombo GE + 4x 10G SFP+ L2 Plus Manag
VIVOTEK’s AW-GTS-287A L2 Plus Managed Switch is a next-generation Fiber Switch offering a full suite of L2 Plus features and additional 1G/10G SFP+ uplink connections. The AW-GTS-287A L2 Plus includes advanced L3 features such as Static Route that delivers a better cost-performance ratio and a lower total cost of ownership in both Enterprise networks and backbone via fiber or copper connections.
$977.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Key Features:
- 20xGE SFP + 4xCombo GE + 4x1G/10G SFP+ L2 Plus Managed Switch
- L2 Plus Managed Switch Provides Easier Manageability, Robust Security and QoS
- IPv4/IPv6 L3 Static Route and DHCP Server
- AC/DC Dual Power Supply for Redundant Design
With high Gigabit port densities and Gigabit SFP, 1G/10G SFP+ support, the GTS-287A switch can act as either a departmental access layer or as an aggregation switch to form a multilevel network. Service providers can take advantage of the high SFP density to structure the aggregation of Fiber to the Building (FTTB) networks that can be extended to subscribers’ sites.
The AW-GTS-287A can be programmed for a number of advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control, IGMP/MLD snooping, GARP VLAN Registration Protocol (GVRP) and sFlow. Through link-aggregation of supporting ports, the AW-GTS-287A allows the operation of a high-speed trunk to combine with multiple ports. It enables a maximum of 14 trunk groups, with up to 16 ports in each group, and also supports connection fail-over.
The AW-GTS-287A is also specially equipped with one 100~240V AC power supply unit and one 24~72V DC power supply unit to provide enhanced reliability and enable scalable redundant power supply installation. The continuous power system is designed to fulfill the specific demands of high tech facilities requiring the highest power integrity and stability.
The AW-GTS-287A also features Graphic View, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications.
Surveillance Feature:
•Auto Discovery and Classification of Network Devices
•Batch Camera Configuration-File Import & Export
•Batch Camera Network/Login Configuration
•Auto Generated Surveillance Topology View
•Easy Tag VLAN Configuration in Topology View
•Smart Device-Management in Topology View
•Display IP Camera Live Stream in Topology View, Floor View
and Google Map View
Auto Discovery
AW-GEV L2+ Series can automatically discover any VIVOTEK’s devices such as network cameras, video servers, CMS and NVR with a simple click of mouse.
Topology View
Auto-generated Topology View allows administrators to quickly view and export a complete network topology in SVG/PNG/PDF format for easier inspection and planning.
Floor View
Upload custom floor images. Floor View allows for quick location of deployed surveillance devices and for export of this view in SVG/PNG/PDF format for easier inspection and planning.
Google Map
Locate surveillance devices on Google map to simplify multi-site management of any large scale deployments.
Device Management
Easy Network Configuration, Open Camera Web UI, Diagnose Camera Connection and Cable Status, Display Camera Live Stream, Change Camera Network Setting, Restore Default, PoE consumption, PoE on/off control.
Device Status
Device Status page to show the real-time verification result of each connection between switch port and device.
VLAN Setting
Hierarchical topology view allows administrators to easily build a VLAN.
Live Stream
Display live streaming camera window in Topology View, Floor View and Google Map View.
Specifications
Technical Specifications
- Model
- AW-GTS-287A
- Product Description
- 20xGE SFP + 4xCombo GE + 4x10G SFP+ L2 Plus Managed Switch
Managing IP Surveillance Functions
Management
- Auto Search VIVOTEK Device
- up to 1000 pcs
- Surveillance Device Management List
- up to 1000 pcs
- DHCP Server Function
- up to 1000 pcs
- VIVOTEK Device Account/Password Setting
- up to 1000 pcs
- VIVOTEK Device Static IP Setting
- up to 1000 pcs
- VIVOTEK Device Grouping Setting for VLAN
- up to 1000 pcs
- VIVOTEK Device Name Edit
- up to 1000 pcs
- VIVOTEK Camera/Video Server Reboot/Restore Default
- up to 1000 pcs
- VIVOTEK Device Re-direct Link
- up to 1000 pcs
- VIVOTEK Device On/Off Line Status
- up to 1000 pcs
E-Map View
- Topology View
- up to 1000 pcs
- Floor View
- up to 1000 pcs
- Google Map View
- up to 1000 pcs
Maintenance
- VIVOTEK Camera/Video Server Configuration File Export/Import
- up to 1000 pcs
- VIVOTEK Cameras/Video Server Configuration File Management
- up to 1000 pcs
- Floor Image Management
- up to 1000 pcs
- Export Surveillance Management Device List
- up to 1000 pcs
- Security
- up to 1000 pcs
- Trouble Shooting
- up to 1000 pcs
- Traffic Monitoring
- up to 1000 pcs
Managed L2 Switch Functions
Port Configuration
- 100M/1G SFP Port
- 20
- GE RJ45/SFP Combo Port
- 4
- 100M/1G/10GbE SFP+ Port
- 4
- Total Ports
- 28
- Console Port
- RS232
HW Performance
- Switching Bandwidth
- 128Gbps
- MAC Address
- 32K
- Jumbo Frames
- 10056 Bytes
L2 Switching
- Spanning Tree
- IEEE802.1D (STP)
- 10056 Bytes
- IEEE802.1w (RSTP)
- 10056 Bytes
- IEEE802.1s (MSTP)
- 10056 Bytes
- VLAN
- 802.1Q Tag-base VLAN
- 4096 VLAN IDs
- Port-based VLAN
- 4096 VLAN IDs
- Voice VLAN
- 4096 VLAN IDs
- Private VLAN
- 4096 VLAN IDs
- Guest VLAN
- 4096 VLAN IDs
- Q-in-Q (Double Tag) VLAN
- 4096 VLAN IDs
- 802.1v Protocol VLAN
- 4096 VLAN IDs
- MAC-based VLAN
- 4096 VLAN IDs
- IP Subnet-based VLAN
- 4096 VLAN IDs
- Port Grouping
- IEEE 802.3ad with LACP(Dynamic)
- up to 16 ports in a group , max up to 14 groups
Static Trunk - up to 8 ports in a group , max up to 14 groups
- IGMP Snooping (v1/v2/v3)
- up to 8 ports in a group , max up to 14 groups
- MLD Snooping
- up to 8 ports in a group , max up to 14 groups
- GARP VLAN Registration Protocol (GVRP)
- up to 8 ports in a group , max up to 14 groups
- Loop Detection
- up to 8 ports in a group , max up to 14 groups
L3 Features
- IP Host Table
- up to 8 ports in a group , max up to 14 groups
- Static Route
- up to 8 ports in a group , max up to 14 groups
- Static ARP
- up to 8 ports in a group , max up to 14 groups
- DHCP Server
- up to 8 ports in a group , max up to 14 groups
QoS Features
- Model
- Model AW-GTS-287A
- Product Description
- 20xGE SFP + 4xCombo GE + 4x10G SFP+ L2 Plus Managed Switch
- Hardware Queues
- 8
- Class of Service
- Port Based
- 8
802.1p - 8
DSCP - 8
TCP/UDP (IPv4/IPv6) - 8
- Rate Limiting
- Ingress
- 8
Egress - 8
- Priority Queue Scheduling
- WRR
- 8
Strict Priority - 8
- IPv4 QoS (QCEs)
- 8
- IPv6 QoS (QCEs)
- 8
Security
- Port Security (MAC-based)
- 8
- IEEE802.1x V
- 8
- ACLs
- L2/L3/L4
- 8
IPv6 Support - 8
- IP Source Guard (IP-MAC-Port Binding)
- 8
- Storm Control
- 8
- RADIUS / TACACS+ Authentication
- 8
- Layer 3 Isolation (Allow/disallow routing between IP Subnets)
- 8
- HTTPs and SSL (Secured Web)
- 8
- SSH v1.5/v2.0 (Secured Telnet Session)
- 8
- BPDU Guard
- 8
- STP Root Guard
- 8
- DHCP Snooping
- 8
Management
- SNMP (v1, v2c, v3)
- 8
- RMON (1,2,3 & 9 groups)
- 8
- Software Upgrade
- 8
- SNMP (v1, v2c, v3)
- 8
- Software Upgrade
- 8
- Configuration Export/Import
- 8
- DHCP
- Client
- 8
Ready - 8
Option 66/67/82 - 8
- Event/Error Log
- Syslog V
- 8
SMTP (RFC821) - 8
- Management Access Filtering
- SNMP
- 8
Web - 8
Telnet - 8
SSH - 8
- Port Mirroring
- 8
- LLDP (IEEE802.1AB)
- 8
- LLDP-MED (IEEE802.1AB)
- 8
- CDP Aware
- 8
- sFlow
- 8
- NTP/SNTP (RFC2030)
- 8
IPv6 Support
- Dual IPv6/IPv4 stack
- 8
- IPv6 Web/SSL
- 8
- IPv6 SNTP (Simple Network Time Protocol)
- 8
- IPv6 Telnet Server/SSH
- 8
- IPv6 Ping Trace Route
- 8
- IPv6 TFTP
- 8
- IPv6 RADIUS
- 8
- IPv6 Syslog
- 8
- IPv6 DNS Client
- 8
- IPv6 Protocol-based VLANs
- 8
- IPv6 SNMP
- 8
Environmental Specifications
- Operating Temperature
- -20°C ~ 60°C (-4°F ~ 140°F)
- Operating Humidity
- 10 ~ 90% RH
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Storage Humidity
- 10 ~ 90% RH
Mechanical Specifications
- Dimensions
- 44 (H) x 442 (W) x 211 (D) mm
- Model
- AW-GTS-287A
- Product Description
- 20xGE SFP + 4xCombo GE + 4x10G SFP+ L2 Plus Managed Switch
- Weight
- 3.1 kg
Power Source
- AC/DC Dual input
- 100~240V AC / 24~72V DC
- Power Consumption (Full load)
- 40W
Certifications
- Certifications
- CE, FCC, LVD, VCCI
Accessories
- Included Accessories
- Power Cord, QIG, CD Manual, Rack Mount Kit, Console cable
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
