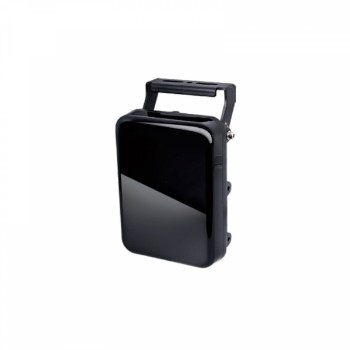

Vivotek CM48I8-4080 Continuous Variable IR Illuminator, Angle: 40~80?,
Vivotek CM48I8-4080 Continuous Variable IR Illuminator, Angle: 40~80?,
$436.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Continuous Variable IR Illuminator, Angle: 40~80?, Power Input: 12~24V DC ±10%, 24V AC (50/60Hz) ±10%, IR: 60~90M, 850 nm, Continuous Variable Angle Technology (CVA Tech), IP68 & IK10, 5 Year Warranty, * Special Order, ETA: 4 weeks, * Non-returnable and N
Features
Please Note: The CM4818 series panels are Special Order with a 4 week lead time. They are non-returnable / non-cancellable once ordered.
Beam Angle (Horizontal): 40° ~ 80°
Distance: 60 ~ 90 m (197 ~ 295 ft)
Beam Pattern: Elliptical
LED Array: 24 pcs LED
Wavelength: 850nm
External Input: IR ON/OFF control
External Output: Day/Night switching
Automatic IR On/Off: Controlled by Light Sensor
Light Sensor Sensitivity: 1/5/10/30(default)/50/100% (Max. 1000 Lux) (accessed via CaMate remote/RS-485 control)
Adjustable IR Power: 20% ~ 100 % (accessed via CaMate remote/RS-485 control)
Power Input: 12~24V DC ±10%, 24V AC(50/60Hz) ±10% (14.5VDC current controlled)
Power Consumption: Max. 48 W
Operating Temperature: -40 °C ~ +60 °C (-104 °F ~ +140 °F)
Working Temperature: -50 °C ~ +60 °C (-122 °F ~ +140 °F)
Humidity: 90%
Dimensions: 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)
Weight: 2.1 kg (4.63 lb)
Cable Length: 0.75 m (2.46 ft) UL AWM
Casing: IP68, IK10
Safety Certifications: IEC 62471, EN 50130-4, CE: EN61000-6-3, EN60598-1, EN60598-2-5, FCC ClassB, EN60529
Warranty: 5 years
Included Accessories: U-Type Bracket (134 × 34 × 81.5 mm)
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
