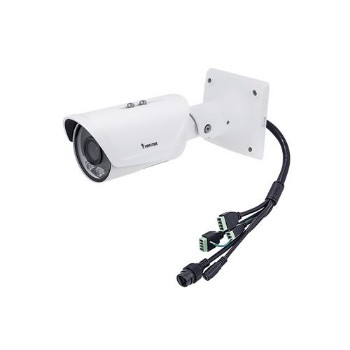

Vivotek IB9367-EH 2MP 30M IR H.265 Extreme Outdoor 120dB WDR Pro Bulle
Vivotek IB9367-EH 2MP 30M IR H.265 Extreme Outdoor 120dB WDR Pro Bulle
$305.00
Out of stock
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
2MP 30M IR H.265 Extreme Outdoor 120dB WDR Pro Bullet, Embedded: Trend Micro™ IoT Security for Surveillance Cameras, 3.6mm Lens, 30 fps @ 1920×1080, H.265, PoE+/12VDC, 2-Way Audio, MicroSD/SDHC/SDXC Card Slot, ONVIF, 3D Noise Reduction, Smart Stream III,
Key Features
- 30 fps @ 1920×1080
- Smart Stream III to Optimize Bandwidth Efficiency
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Built-in IR Illuminators, Effective up to 30 Meters
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
- -50°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions
- Trend Micro IoT Security
- VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)
Technical Specifications
System Information
- Model
- IB9367-EH
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 512MB
Camera Features
- Image Sensor
- 1/2.8″ Progressive CMOS
- Max. Resolution
- 1920×1080 (2MP)
- Lens Type
- Fixed-focus
- Focal Length
- f = 3.6 mm
- Aperture
- F1.6
- Iris Type
- Fixed-iris
- Field of View
- 88° (Horizontal)
47° (Vertical)
104° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination
- 0.07 lux @ F1.6 (Color)
0.001 lux @ F1.6 (B/W)
0 lux with IR illumination on
- Tilt Range
- 90°
- Rotation Range
- 180°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920×1080
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 58 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, video rotation, defog, 3D noise reduction, DIS, HLC
Audio
- Audio Capability
- Two-way Audio (full duplex)
- Audio Compression
- G.711, G.726
- Audio Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
- VADP Package
- Genetec Package, Stratocast, Trend Micro IoT Security
Alarm and Event
- Event Trigger
- Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy
- Event Action
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
- LED Indicator
- System power and status indicator
- Power Input
- DC 12V
IEEE 802.3at PoE Class 4
(Power Redundancy)
- Power Consumption
- Max. 19 W
- Dimensions
- 266 x 118 x 118 mm
- Weight
- 1,142 g
- Casing
- IP66, IP67, IK10 (Metal Housing)
- Certifications
- CE, LVD, FCC Class A, VCCI, C-Tick, UL
- Operating Temperature
- Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
- Humidity
- 90%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
