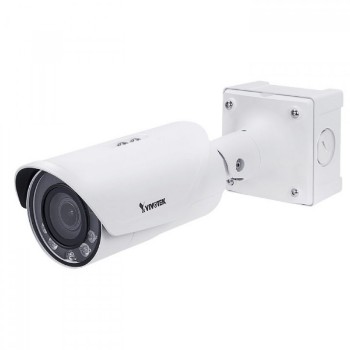

Vivotek IB9367-HT 2MP 30M IR H.265 Outdoor Bullet, Embedded: ?Trend Mi
Vivotek IB9367-HT 2MP 30M IR H.265 Outdoor Bullet, Embedded: ?Trend Mi
$376.00
Out of stock
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
2MP 30M IR H.265 Outdoor Bullet, Embedded: Trend Micro™ IoT Security for Surveillance Cameras, 2.8~12 mm Remote Focus P-iris Lens, 30 fps @ 1920×1080, 120 dB WDR PRo, VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package),
Key Features
30 fps @ 1920×1080
H.265 Compression Technology
Smart Stream III to Optimize Bandwidth Efficiency
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
DIS (Digital Image Stabilization) to Control Image Stabilization
Video Rotation for Corridor View
Remote Focus Lens for Easy Installation
Trend Micro IoT Security
VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)
Technical Specifications
System Information
- Model
- IP9167-HT(2.8-10mm): f = 2.8-10 mm
IP9167-HT(12-40mm): f = 12-40 mm
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 512MB
Camera Features
- Image Sensor
- 1/2.8″ Progressive CMOS
- Max. Resolution
- 1920×1080 (2MP)
- Lens Type
- Vari-focal, Remote Focus, CS-mount
- Focal Length
- IP9167-HT(2.8-10mm): f = 2.8 ~ 10 mm
IP9167-HT(12-40mm): f = 12 ~ 40 mm
- Aperture
- IP9167-HT(2.8-10mm): F1.6 ~ F2.97
IP9167-HT(12-40mm): F1.8 ~ F2.3
- Iris Type
- P-iris
- Field of View
- IP9167-HT(2.8-10mm):
35° ~ 105° (Horizontal)
20° ~ 55° (Vertical)
41° ~ 127° (Diagonal)
IP9167-HT(12-40mm):
10° ~ 26° (Horizontal)
6° ~ 14° (Vertical)
11° ~ 30° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- Minimum Illumination
- IP9167-HT(2.8-10mm):
0.07 lux @ F1.6 (Color)
0.01 lux @ F1.6 (B/W)
IP9167-HT(12-40mm):
0.09 lux @ F1.8 (Color)
0.01 lux @ F1.8 (B/W)
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920×1080
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 61 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, AE speed, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3D noise reduction, DIS, video rotation
Audio
- Audio Capability
- Two-way Audio (full duplex)
- Audio Compression
- G.711, G.726
- Audio Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
Alarm and Event
- Event Trigger
- Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy
- Event Action
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server and SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*2
Digital output*2
RS-485
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af PoE Class 2
DC 12V
- Power Consumption
- Max 6.5 W
- Dimensions
- IP9167-HT(2.8-10mm):
188 (D) x 70 (W) x 61 (H) mm
IP9167-HT(12-40mm):
205 (D) x 70 (W) x 61 (H) mm
- Weight
- IP9167-HT(2.8-10mm): 660 g
IP9167-HT(12-40mm): 710 g
- Certifications
- CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature
- Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity
- 90%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
