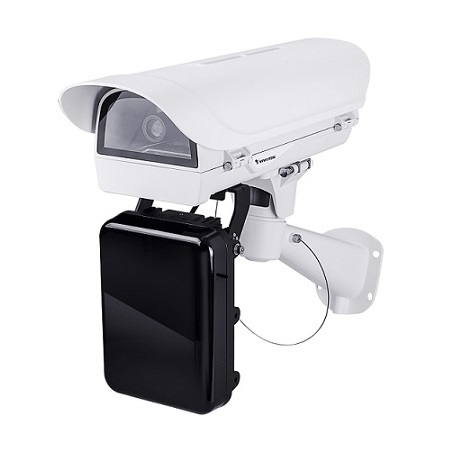

Vivotek IP9172-LPCKIT-H 155MPH Dual Lane Highway License Plate Capture

Vivotek IP9172-LPCKIT-H 155MPH Dual Lane Highway License Plate Capture

VIVOTEK’s IP9172-LPC (Freeway) is a high-performance, network-based vehicle imaging system designed to provide clear license plate images for reliable recognition in high-speed traffic applications. Adopting a 3-Megapixel global shutter sensor providing high-resolution images to support a wide range of dual lane scenarios and the built-in corresponding pulse mode IR LEDs, the camera can support a maximum car speed of up to 250kmph with lower power consumption.

$2,330.00

Add to Wishlist

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
SKU: VIVOTEK:IP9172-LPCKIT-H Category:

Product Description

Key Features:

  • Capture Vehicle Speeds of up to 155MPH (250 km/hr)
  • Global Shutter Camera and Pulsed Mode IR Illuminator
  • Supreme Anti-Glare Capability
  • Automatic Exposure Bracketing Function (AEB)
  • Deal with Reflective and Non-Reflective License Plates by Single Camera
  • Pre-Assembled LPC Kit for Easy Installation
  • Remote Controllable Lens and IR Illuminator for Low Maintenance

Employing the unique Auto Exposure Bracketing (AEB) function allows the camera to capture both surrounding and license plate views even at night time. Additionally, the IP9172-LPC is endowed with a 12-40mm focal length remote focus lens. The CaMate IR utilizing CVA Tech provides adjustable beam angles from 20 to 40 degrees for variable distances, enabling the installers to adjust zoom/focus both more precisely and with greater flexibility.

Cybersecurity Management License
VIVOTEK provides flexible options for the purchase of add-on Cybersecurity Management Licenses. Select the most suitable license according to your needs, and extend your licenses as required.

Benefits:

High-Speed Vehicle Capturing System
VIVOTEK’s IP9172-LPC (Freeway) adopts a 3-Megapixel global shutter sensor combined with the built-in corresponding 24W pulse mode IR LEDs. The camera can provide clear license plate images for reliable recognition in high-speed traffic applications.

Capturing Both Reflective AND Non-Reflective License Plates
Employing a unique Auto Exposure Bracketing function allows the IP9172-LPC camera to capture both reflective and non-reflective license plate at the same time, even at night time, and it can provide detailed images like car color, brand, and type for general traffic surveillance purposes. Therefore, with only one VIVOTEK IP9172-LPC camera, users can yield more information from a single location than with previous multi-camera systems.

Supreme Anti-Glare Capability
Capturing images at night is a challenging issue for any surveillance application, but for License Plate Capture applications the challenge is even greater due to noise and glare caused by the headlights of cars. The IP9172-LPC (Freeway) is equipped with external 24W pulse mode IR Illuminators and a delicate headlight filter, which help to filter out reflected light and only capture detailed information from the plates. Moreover, the IR threshold is also programmed to deploy the IR Illuminator automatically to ensure 24/7 & Day/Night performance.

Specifications

Technical Specifications – Kit

System Information
Model
IP9172-LPC (Freeway)
Max. Speed
155MPH (250 km/hr)
IR Threshold
IR on: 300 lux
IR off: 600 lux
RS485 configurable
Shutter Time
1/480 to 1/16,000 sec.
Max. Shutter Time
1/120 to 1/32,000 sec.
Illuminators
24W, 20° ~ 40° remote adjustable
Capture Range
Up to 25 meters
Captured Lanes
Dual Lanes
* Suggested width per lane: 3.5 ~ 4M
Power Input
AC/DC 24V
Power Consumption
Max. 60W, AC/DC 24V (Heater on)
Max. 45W, AC/DC 24V (Heater off)
Weight
6,482 g
Housing
Weather-proof IP68-rated housing
Vandal-proof IK10-rated housing
Operating Temperature
Starting Temperature:
0°C ~ 60°C (32°F ~ 140°F)
-40°C ~ 60°C (-40°F ~ 140°F), with 30W heater on
Working Temperature:
0°C ~ 60°C (32°F ~ 140°F)
-40°C ~ 60°C (-40°F ~ 140°F), with 15W heater on
Humidity
90%
Video
Compression
H.265, H.264, MJPEG
Maximum Streams
3 simultaneous streams
Image Settings
Adjustable image size, quality and bit rate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, DIS; video rotation, remote focus, LPC scene mode, AEB*, Spectrum mode*
*AEB: Auto Exposure Bracketing.
*Spectrum mode for license plate image enhancement.
Network
Users
Live viewing for up to 10 clients
Protocols
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface
10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Supported, specification available at www.onvif.org
Alarm and Event
Event Trigger
Manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event and quarantine event)
Event Action
Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
IP Camera Connectors
RJ-45 cable connector for Network/PoE connection *1
Audio input *1
Audio output *1
DC 12V power input *1
AC 24V power input *1
Digital input *2
Digital output *1
RS485 *1
Safety Certifications
Whole Kit: CE, LVD, FCC Class A, VCCI, C-Tick, UL
Network Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above

Technical Specifications – Network Camera

System Information
Model
IP9172-LPC (Freeway)
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
1 GB
Camera Features
Image Sensor
1/1.8″ Global Shutter CMOS
Maximum Resolution
2048×1536 (3MP)
Lens Type
Vari-focal, Remote focus
Focal Length
f = 12 ~ 40 mm
Aperture
F1.8 ~ F2.3
Iris Type
P-iris
Field of View
12.3° ~ 35.8° (Horizontal)
9.8° ~ 26.3° (Vertical)
15.8° ~ 47.6° (Diagonal)
LPR Technology
LPC Scene mode, Spectrum mode*, Auto Exposure Bracketing (AEB)
* Spectrum mode for license plate image enhancement
Day/Night
Removable IR-cut filter for day & night function
(Headlight filter design for Anti-Glare)
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity: 128GB)
Seamless Recording
Video
Maximum Frame Rate
AEB off:
55 fps @ 2048 x 1536
60 fps @ 1920 x 1080
AEB On:
30f ps @ 1920 x 1080 (Stream 1, Stream 2)
60 fps @ 1920 x 1080 (Stream3)
S/N Ratio
56 dB
Dynamic Range
50 dB
Audio
Audio Capability
Two-way Audio (full duplex)
Compression
G.711, G.726
Interface
External microphone input
External line output

Technical Specifications – IR Illuminator

General
Model
CF24I8-2040
Max. Distance
25 meters
Beam Angle
20° ~ 40° remote adjustable
Power Input
24VDC ±10%
Power Consumption
Max. 24 W
Pulse mode: Power output type 288 W
Weight
2.1 kg
Housing
Weather-proof IP68-rated housing
Vandal-proof IK10-rated housing
Operating Temperature
Continous Mode: -40 °C ~ 50°C (-40 °F ~ 122 °F)
Pulse Mode: -40 °C ~ 60 °C (-40°F ~ 140°F)
Color
Black
Wavelength
850nm
Dimensions
220 x 160 x 73 mm
Included Accessories
U-Type Bracket (134 × 34 × 81.5 mm)
Certifications
EN50130-4, CE: EN61000-6-3, FCC Class A, EN60529
Integrated Control
Built-in photocell for automatic IR on/off

Applications:

  • Electronic Toll Collection
  • Red Light Enforcement
  • Traffic Monitoring
