Product Description

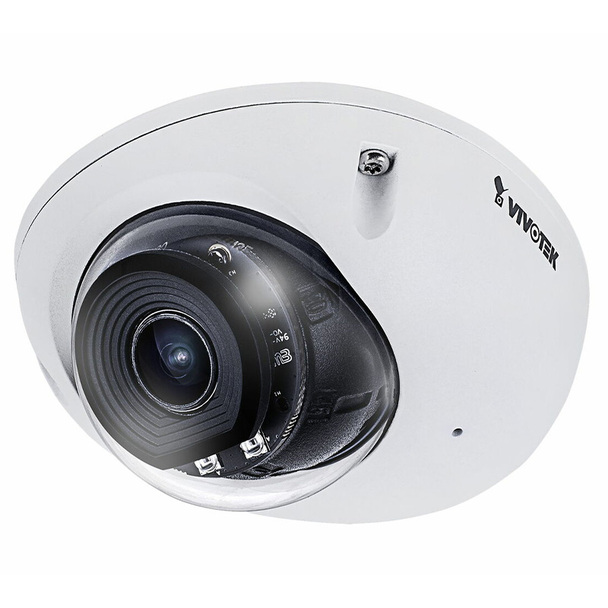

MD9560

2MP 20M IR H.265 Outdoor Vandalproof Mobile Dome Camera, 2.8mm Lens, 30 fps @ 1920×1080, 120 dB WDR Pro, PoE, 1-Way Audio w/Built-in microphone & External line input, MicroSD/SDHC/SDXC Card Slot, ONVIF, Smart Stream III, 3D Noise Reduction, Smart IR, Vid

Features

Camera Features
Image Sensor 1/2.9″ Progressive CMOS
Max. Resolution 1920×1080 (2MP)
Lens Type Fixed-focal
Focal Length f = 2.8 mm
Aperture F1.8
Auto-iris Fixed-iris
Field of View 108° (Horizontal), 60° (Vertical), 124° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
Minimum Illumination 0.13 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W), 0 Lux with IR illumination on
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording

Video
Video Compression H.265, H264, MJPEG
Maximum Frame Rate 30 fps @ 1920×1080
Maximum Streams 3 simultaneous streams
S/N Ratio 60 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog

Audio
Audio Capability One-way Audio
Audio Compression G.711, G.726
Audio Interface Built-in microphone, External line input
Effective Range 5 meters

Network
Users Live viewing for up to 10 clients
Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
ONVIF Supported

Solution Integration
Video Motion Detection Five-window video motion detection
VADP Package Trend Micro IoT Security, Stratocast

Alarm and Event
Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card

General
Connectors M12 for Network/PoE connection*1, Audio input*1, Digital input*1 (30V, 1A), Digital output*1 (12V, 50mA)
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 2
Power Consumption Max. 5.5 W (IR on), Max. 3.3 W (IR off)
Dimensions 98 x 54 x 110.8 mm
Weight 400 g
Casing IP66, IP67, IK10, NEMA 4X
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL, NEMA 4X, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118
Operating Temperature -25°C ~ 60°C (-13°F~ 140°F) (IR off); -25°C ~ 55°C (-13°F~ 131°F) (IR on); Maximum (intermittent): 70 °C (158 °F)
Humidity 98%
Warranty 36 months

Included Accessories
Quick installation guide, screwdriver, alignment sticker, desiccant bag
