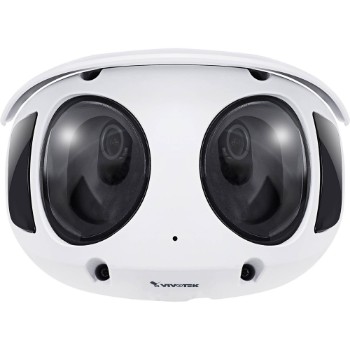

Vivotek MS9390-HV 8MP 20M IR Multi-Sensor Outdoor Vandal Proof 180° P
Vivotek MS9390-HV 8MP 20M IR Multi-Sensor Outdoor Vandal Proof 180° P
The MS9390-HV utilizes H.265 compression and Smart Stream III technology. This combination enables users to greatly save on storage and bandwidth consumption usually associated with high resolution surveillance.
$842.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
Key Features:
- 8-Megapixel Resolution
- H.265 Compression Technology
- 180° Panoramic View
- 30 fps @ 4512×1728
- Video Alignment for a Seamless Image
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 20 Meters
- SNV (Supreme Night Visibility)
- Smart Motion Detection to Reduce False Alarms
- Built-in Microphone
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Trend Micro IoT Security
The MS9390-HV is the latest and most efficient panoramic network camera offered in surveillance. Through the use of two wide angle lenses, electronic image stitching*, and highresolution sensors, the 8MP 180° MS9390-HV is in a new class all by itself. With its unique dual-sensor design, the MS9390-HV is able to maintain a higher vertical FOV than most traditional multi-sensor panoramic cameras using 4 sensors. This higher vertical FOV enables users to have more video coverage, thereby enabling them to capture more evidence below the point of camera installation. The MS9390-HV goes even further with WDR Pro technology for high contrast environments, 30fps at full resolution, and 180° IR illuminators up to 20 meters, ensuring users with 24/7 comprehensive panoramic video surveillance.
In addition to its panoramic image quality, the MS9390-HV is also simple to install. It has been designed to be directly wall mounted, including 20° of internal tilt adjustment on the lenses to get the exact angle desired. With an IP66 weather proof and IK10 vandal proof housing, the MS9390-HV can be installed both indoors and outdoors, and handle most of what mother nature has to offer. The only accessory available for MS9390-HV is a sunshield, which is included with the camera.
Technical Specifications
System Information
- Model
- MS9390-HV
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128 MB
- RAM
- 1 GB
Camera Features
- Image Sensor
- 1/2.7″ Progressive CMOS
- Max. Resolution
- 4512×1728 (8MP)
- Lens Type
- Fixed-focal
- Focal Length
- f = 2.8 mm
- Aperture
- F1.2
- Iris Type
- Fixed iris
- Field of View
- 180° (Horizontal)
50° (Vertical)
180° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 20 meters with Smart IR , IR LED*8
- Minimum Illumination
- 0.05 lux @ F1.2 (Color)
0.01 lux @ F1.2 (B/W)
0 lux with IR illumination on
- Tilt Range
- 20°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage
- Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 4512×1728
- Maximum Streams
- 4 video streams (Up to 9 configurable profiles)
- S/N Ratio
- 46 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, people detection, time filter
- Smart VCA
- Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detection
*Please access https://license.vivotek.com/ to get the free trial license.
- VADP Package
- Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
Alarm and Event
- Event Trigger
- Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
- Event Action
- Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100 Mpbs Network/PoE connection
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3at PoE Class 4
- Power Consumption
- Max: 15.2 W/6.9 W (IR on/off)
- Dimensions
- 165 x 112 x 97 mm (w/o sunshield)
165 x 119 x 100 mm (w/ sunshield)
- Weight
- 1.2 kg
- Certifications
- EMC: CE (EN55032, EN55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A),VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL60950-1), CB (IEC 60950-1); Environment: IK10 (IEC 62262), IP66 (IEC 60529)
- Operating Temperature
- Starting Temperature:
-10°C ~ 50°C (14°F ~ 122°F)
Working Temperature:
-20°C ~ 55°C (-4°F ~ 131°F) (IR off)
-20°C ~ 50°C (-4°F ~ 122°F) (IR on)
- Humidity
- 90%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Accessories:
