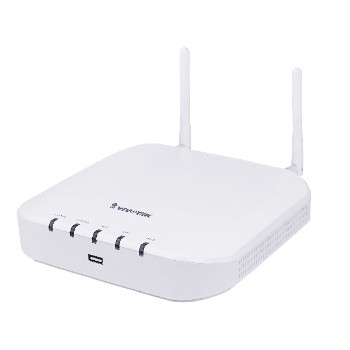

Vivotek ND8212W 8-Channel 1xHDD Bay One Button Auto Setup WiFi NVR, Su
Vivotek ND8212W 8-Channel 1xHDD Bay One Button Auto Setup WiFi NVR, Su
$195.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
8-Channel 1xHDD Bay One Button Auto Setup WiFi NVR, Supports 4 WiFi + 4 wired cameras + 1 HDD, Max 6TB, WPS Connection, Virus free Embedded Linux OS, Https SSL encryption, Wi-Fi AP & Station Mode, 4K/1080P/720P HDMI Local Video Output, Six fisheye de-warp
Key Features
- H.264 Compression Technology
- Up to 4CH Wi-Fi + 4CH Wired IP Camera Input
- HDMI Video Output up to 4K Resolution
- 1 x 3.5″ SATA HDD up to 6TB
- Up to 8MP Camera Liveview and Playback
- VIVOCloud App & Portal for 24/7 Viewing
- Easy Connection with IP Cameras and Quick Auto Setup
- Instant Playback Fisheye Dewarp
- 2.4Ghz 802.11 b/g/n Wi-Fi Connection
- ONVIF Compliance (Project Support Function)
Specifications
Technical Specifications
Device
- Model
- ND8212W
- OS
- Embedded Linux
- Watchdog
- Hardware + Software
- Power Restoration
- System Restart Automatically after Power Recovery
Local Display
- LiveView Display
- 8 Channels (4-Ch WiFi + 4-Ch Wired)
Multi-Layout Display:
1×1, 2×2,1P+3,3V
- Video Output
- HDMI x1
- Display Resolution
- 3840×2160,1920×1080, 1280×720
- Camera Position
- Change the viewcell position on the Live View screens
- Stream Application
- ConstantAuto Adaptive Stream
- Monitor Enhancement
- OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
- Fisheye Dewarp
- 1O, 1P, 1R, 1O3R, 1O8R
- PTZ Operation
- Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Video
- Video Format
- H.264, MJPEG
- Graphic Decoder
- Hardware decoding
- Decoding Resolution
- Up to 3840×2160
- Decoding Capability
- 3840×2160 @ 30 fps (1-CH)
1920×1080 @ 120 fps (4-CH)
1280×720 @ 240 fps (8-CH)
Audio
- Audio Format
- G.711, G.726
- Audio In/Out
- HDMI with audio out
Record
- Recording Time (sec.)
- Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
- Recording Stream
- Single
- Recording Throughput
- 24 Mbps
- Recording Mode
- Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
- Recording Setting
- Recycle (unit: Day)
- Watermark
- Supported
Storage & Backup
- HDD Devices
- Internal x1 (3.5″)
- HDD Max. Capacity
- 6TB
- Disk Management
- Create, Format and Remove Disk
HDD S.M.A.R.T.
- Video Clip Export
- USB Dongle (FAT Format)
- Schedule Backup
- FTP
Playback
- Playback Display
- 4 Channels
Multi-Layout Display: 1×1, 2×2, 1P+3, 1V+3
- Playback Control
- Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
- Video Search
- By calendar, date/time, and alarm
- Thumbnail Explorer (Storyboard)
- Listing the thumbnail of recorded video (Max. 2-CH)
- Snapshot
- JPEG
- Video Clip Export
- EXE
Network
- Ethernet
- 10/100Mbps Ethernet (RJ-45) x 1
- Video Throughput for Remote Client
- 40 Mbps
- WiFi
- 802.11a/b/g/n 2T2R
- Protocols
- IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter, WPS
External Interface
- USB
- USB 2.0 x 2 (Front x1, Back x1)
- Audio
- HDMI with audio out
- Antenna Interface
- WiFi x 2
System
- Camera Integration
- ONVIF core spec 2.2 or above (by project request)
- Event
- Motion Detection, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO
- Event Action
- Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), Camera DO, VIVOCloud APP Notification
- User Management
- User level: administrator, regular user
- Log
- System, recording, user, error
- Date & Time
- Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Remote Client
- Software AP
- Shepherd, VAST 2
- Mobile/Tablet App
- iViewer (Android & iOS)
- Web Browser
- Internet Explorer 10 (32 bit) or above
- VIVOCloud
- Supported
General
- Power Input
- DC 12V 3A
- Power Consumption
- Max. 15.6 W
- Dimensions
- 198 (W) x 200 (D) x 47 (H) mm
- Weight
- 550 g (Without HDD)
- Operating Temperature
- 0°C ~ 40°C (32°F ~ 104°F)
- Humidity
- 0 ~ 95%
- Safety Certifications
- CE, LVD, FCC, VCCI, C-Tick, MIC, NCC, BSMI
- Warranty
- 24 months
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
