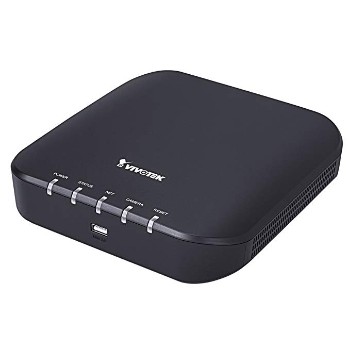

Vivotek RX9401 H.265 Single-Channel Ultra-HD Video Receiver, 16 Channe
Vivotek RX9401 H.265 Single-Channel Ultra-HD Video Receiver, 16 Channe
$195.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
RX9401, H.265 Single-Channel Ultra-HD Video Receiver, 16 Channel Camera Inputs, HDMI Video Output up to 4K Resolution, Supports 8MP Cameras, One Button Auto Setup, Onboard Fisheye Dewarp, ONVIF, Compact Size with Fanless Design, Supports Various Split-window Layo
Key Features
- H.265/H.264 Compression Technology
- Up to 16 Channel IP Camera Input
- HDMI Video Output up to 4K Resolution
- Up to 8MP Camera
- One Button Auto Setup
- Fisheye Dewarp
- ONVIF Compliance (Project Support Function)
- Compact Size with Fanless Design
- Supports Various Split-window Layout Display Modes
Specifications
Technical Specifications
Device
- Model
- RX9401
- OS
- Embedded Linux
- Watchdog
- Hardware + Software
- Power Restoration
- System Restart Automatically after Power Recovery
Local Display
- LiveView Display
- 16 Channels
Multi-layout display: 1×1, 2×2, 3×3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4×4
- Video Output
- HDMI x1
- Display Resolution
- 3840×2160, 1920×1080, 1280×720
- Camera Position
- Change the viewcell position on the Live View screens
- Stream Application
- ConstantAuto Adaptive Stream
- Monitor Enhancement
- OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio
- Fisheye Dewarp
- 1O, 1P, 1R, 1O3R, 1O8R
- PTZ Operation
- Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Video
- Video Format
- H.265, H.264
- Graphic Decoder
- Hardware decoding
- Decoding Resolution
- Up to 3840×2160
- Decoding Capability
- 3840×2160 @ 30 fps (1-CH)
1920×1080 @ 120 fps (4-CH)
720×480 @ 480 fps (16-CH)
Audio
- Audio Format
- G.711, G.726
Network
- Ethernet
- 10/100Mbps Ethernet (RJ-45) x 1
- Video Throughput for Remote Client
- 40 Mbps
- Protocols
- IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
External Interface
- USB
- Front: 1 (USB 2.0)
Back: 1 (USB 2.0)
System
- Camera Integration
- ONVIF core spec 2.2 or above (by project request)
- User Management
- User level: administrator, regular user
- Date & Time
- Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Remote Client
- Software AP
- Shepherd, VAST 2(reserved)
- Web Browser
- Internet Explorer 10 (32 bit) or above
General
- Power Input
- DC 12V 1.5A
- Power Consumption
- Max. 9.24 W
- Dimensions
- 198 (W) x 200 (D) x 47 (H) mm
- Weight
- 530 g
- Operating Temperature
- 0°C ~ 40°C (32°F ~ 104°F)
- Humidity
- 0 ~ 95%
- Safety Certifications
- CE, LVD, FCC, VCCI, C-Tick
- Warranty
- 36 months
