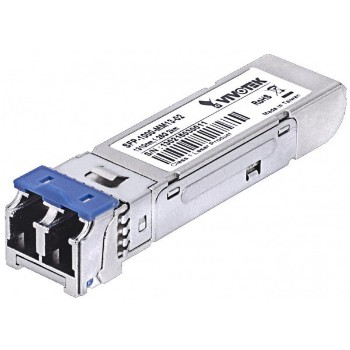

Vivotek SFP-1000-MM85-X5I Industrial Gigabit Mini GBIC Multi Mode 850n
Vivotek SFP-1000-MM85-X5I Industrial Gigabit Mini GBIC Multi Mode 850n
$30.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
SFP-1000-MM85-X5I: Industrial Gigabit Mini GBIC Multi Mode 850nm 0.5KM, LC Connector
Technical Specifications
- Model
- SFP-1000-MM85-X5I
- Data Rate Gigabit
- 1.25G
- Type
- SFP
- Center Wave Length
- 850 nm
- Laser Type
- VCSEL
- Tx
- -3 ~ -10 dBm
- Rx
- -3 ~ -20 dBm
- Voltage
- 3.3V
- Transmission Range
- 50/125µm, 62.5/125µm, up to 0.5km
- Fiber Type (MMF/SMF)
- MMF
- Connector
- LC
- Dimensions (L x W x H)
- 55.9 x 14.69 x 12.39 mm
- Operating Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity
- 5 ~ 90% (non-condensing)
- MSA Compliant
- Yes
- Certifications
- IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
