Product Description

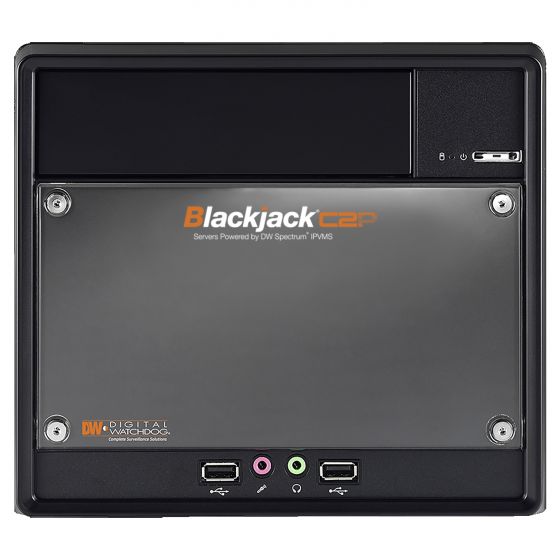

DW-BJC2P: The Blackjack® C2P™ Server is a dedicated station to facilitate the integration of DW Spectrum® IPVMS with C2P™ (Convergence to Pixel®) products. The server brings metadata from any TCP/IP enabled device seamlessly into a DW Spectrum®. The C2P solution is used to normalize all TCP/IP metadata received at the edge of the network into a common integration framework. By normalizing all metadata at the edge of the network, the DW Spectrum® Client can become the head-end for monitoring all TCP/IP connected sensors and devices, while also ensuring all metadata is stored time synchronized with the DW Spectrum® video. The integration framework provides the user with a common set of both real-time and forensic analysis tools that are common to all TCP/IP device integrations. Interfaces include POS, RFID, Access Control, LPR, ATM, Weigh Scales, Bar Code Readers, Biometrics Security, PLC Controllers.
Form factor | Desktop / Cube | |
Operating system | Windows® 10 Pro | |
OS on SSD | Yes | |
CPU | Intel i7® processor | |
Memory | 16GB | |
Ethernet port | 2x gigabit ethernet ports (RJ45) | |
Storage | Maximum SDD hard drives | 1 x SSD + 2 x SATA HDD |
Video-out | Outputs | 1x VGA, 1x true HD, 1x DP outputs (support for dual display) |
Video card | Onboard Intel HD Graphics | |
Resolution | Max 4096×2160 | |
Pre-loaded VMS software | DW Spectrum® IPVMS | |
Remote clients | Cross-platform – Windows®, Linux Ubuntu® and Mac® | |
Mobile apps | ||
Keyboard & mouse | Included | |
Power supply | 300W** | |
Operating temperature and humidity | 41°F~104°F (5°C~40°C) | |
Operating humidity | 20~90% RH | |
Dimension (WxDxH) | 8.5″ x 12.8” x 7.5” (215.9 x 325.1 x 190.5 mm) | |
Warranty | 5 year limited |
Additional Information
Weight | 10 lbs |
---|---|
Dimensions | 10 × 10 × 10 in |
