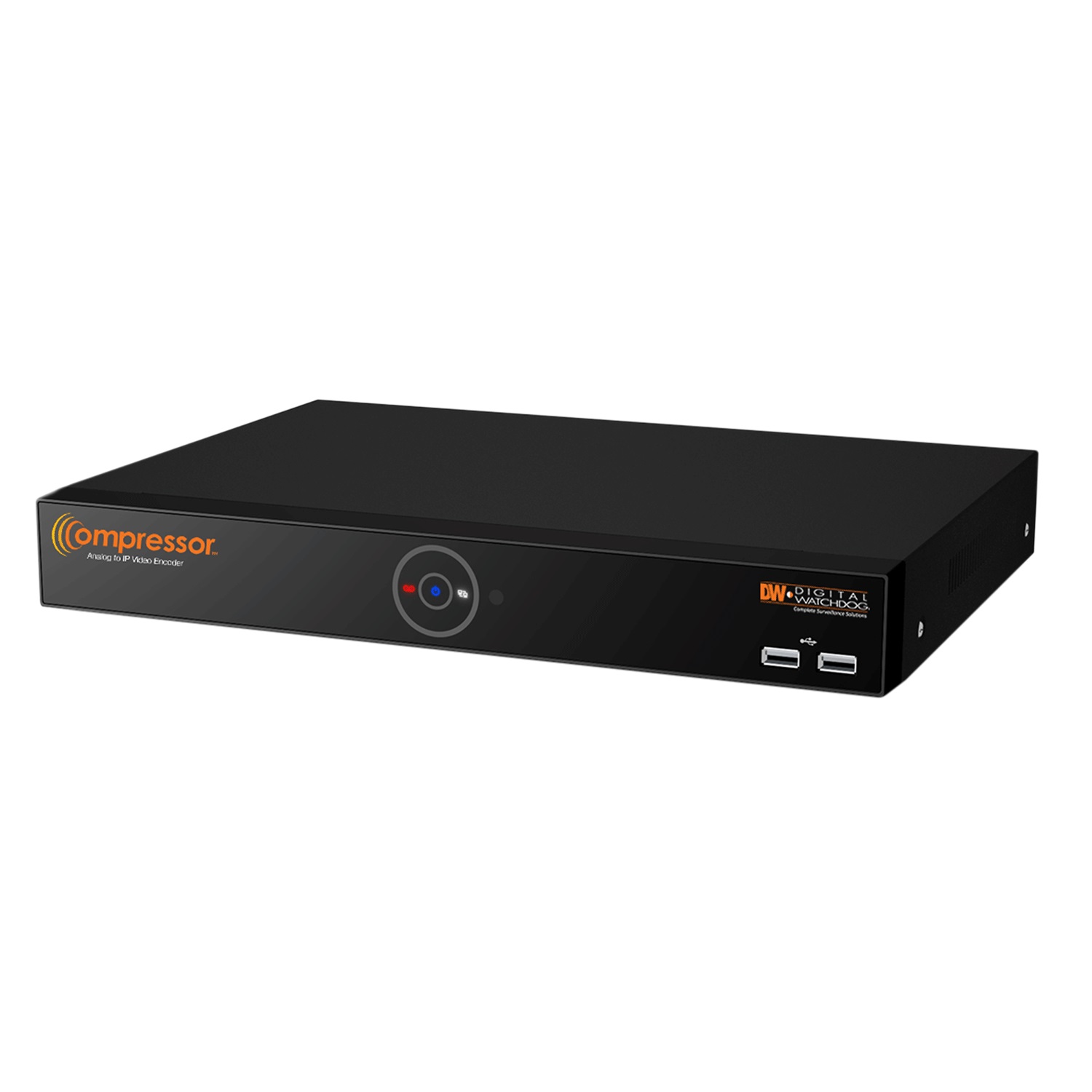

Digital Watchdog DW-ENHD16 16-Channel HD and legacy analog to IP signal encoder
Digital Watchdog DW-ENHD16 16-Channel HD and legacy analog to IP signal encoder
$1,619.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
DW-ENHD16: The Compressor™ analog to IP signal encoder converts up to 16 HD-Analog, HD-TVI and CVBS signals into IP, with live local display at real-time 2.1MP/1080p and streaming at a total of 240fps. The Compressor™ is fully integrated with DW Spectrum® IPVMS and is an affordable solution for applications with both analog and IP cameras.
The encoder comes with the DW-EN19RE 19″ rack mount ears included.
Specifications
VIDEO | ||
Video input | Signal type | Universal HD over Coax® technology with HD-Analog, HD-TVI and all analog to 960H signal support |
CH# | 16 CH BNC input | |
Video output | True HD and VGA: 1920×1080, 1280×720, 1024×768 Spot: 1.0 Vp-p (75 ohm, composite) | |
| Display mode | True HD and VGA: 1/4/9/16 split, PIP, sequence Spot: 1/16 split, sequence | |
Resolution | Mainstream: 240fps @ 2.1MP/1080p | |
Substream: 240fps @ VGA | ||
Compression | H.264 | |
Audio | 4 RCA audio inputs | |
1 RCA audio output | ||
PERFORMANCE | ||
Interface | Alarm input | 4 alarm inputs |
Alarm output | 1 alarm output, terminal | |
RS-485 / RS-232 / UTC | 1 terminal block | |
PTZ control via coax (HD-Analog / HD-TVI) | ||
Features | Motion detection | Locally and via DW Spectrum® IPVMS |
| Privacy masks | Yes | |
Alarm management | Alarm input (DW Spectrum® IPVMS integration coming soon), video loss | |
Notifications | Trigger alarm output, e-mail notifications (DW Spectrum® IPVMS integration coming soon) | |
Security | HTTPS, SSL, multi-user authority | |
NETWORK | ||
Network connection | 1 RJ45 10/100/1000 Base-T | |
Streaming | Transmission speed live | Max. 240fps @ 2.1MP/1080p |
| Max throughput | 288Mbps | |
Bandwidth | Support bandwidth control | |
Protocols | TCP/IP, UDP, DHCP, uPNP, DDNS, Zeroconf, Bonjour, ONVIF | |
Access | Web viewer | Internet Explorer® XP or higher with live view and remote setup |
software | DW Spectrum® IPVMS and ONVIF approved CMS | |
GENERAL | ||
Operating temperature | 32°F ~ 113°F (0°C ~ 45°C) | |
Operating humidity | Less than 90% (non-condensing) | |
Other certifications | FCC | |
Electrical | Power requirement | 12V DC, 2A |
Power consumption | Max. 14.4W, 1.2A | |
Dimensions | 14.76” x 1.76” x 12.52” (375 x 44.9 x 318.2 mm) | |
Weight | 3.96lbs (1.8kg) | |
| Warranty | 2 year warranty | |
