Digital Watchdog DW-HDBALUN5 Passive Real Time Transmission Over UTP C
Digital Watchdog DW-HDBALUN5 Passive Real Time Transmission Over UTP C
$12.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description

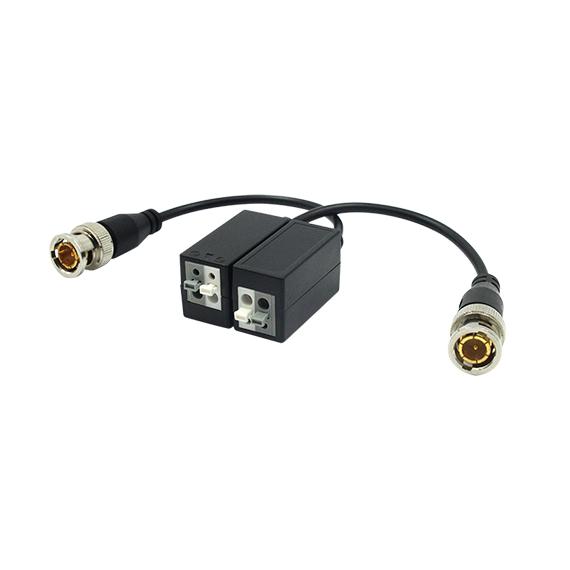

DW-HDBALUN5: The HD video balun converter is a passive, non-amplifier, video balun that allows for real-time analog and high-definition video transmission via UTP. The DW-HDBALUN5 is compatible with all HD-Analog, HD-TVI and HD-CVI cameras up to 4K resolution. The converter’s superior interference and low emissions allow camera to recorder connections made over existing UTP infrastructure. The DW-HDBALUN5 has a built-in surge suppressor to protect against damaging voltage spikes and its crosstalk and noise immunity ensure quality video signals.
Specifications
PROPERTIES | |
Transmission signal | 1 channel |
Transmission distance | HD-CVI 720p: 1312ft (400M) HD-CVI 2.1MP/1080p: 820ft (250M) HD-CVI 4MP/4K: 656ft (200M) HD-TVI 720p: 820ft (250M) HD-TVI 2.1MP/1080p: 820ft (250M) HD-TVI 5MP/4K: 590ft (180M) HD-Analog 720p: 1148ft (350M) HD-Analog 2.1MP/1080p: 656ft (200M) HD-Analog 5MP/4K: 590ft (180M) |
Category type | UTP CAT5 / 5E / 6 |
VIDEO TRANSMISSION PROPERTIES AND PORT | |
Coaxial video connector | BNC-M |
Twisted-pair video connector | Push-terminal |
Compatible format | HD-Analog / HD-TVI / HD-CVI / CVBS |
Resolution | Up to 5MP / 4K resolution |
Anti-interference | >60 db |
PROTECTION | |
ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 |
Coaxial cable connector | 2kV (different-code) Per: IEC10004-5 |
UTP cable connector | 2kV (different-code), 4KV (common-code), Per: IEC1000-4-5 |
IMPEDANCE | |
BNC male | 75 ohms |
UTP cable | 100 ohms |
STABILITY | |
MTBF | >10000H |
ENVIRONMENTAL | |
Operating temperature | 14 ~ 131° F (-10 ~ 55° C) |
Storage temperature | 10.4 ~ 158° F (-12 ~ 70° C) |
Operating humidity | 0-95% (non-condensing) |
MECHANICAL | |
Dimensions (L*W*H) | 2.16″ x 0.63″ x 0.75″ (55 x 16 x 19 mm) |
Shell | ABS |
Color | Black |
Weight | 0.04lbs (22.6gr) |
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
