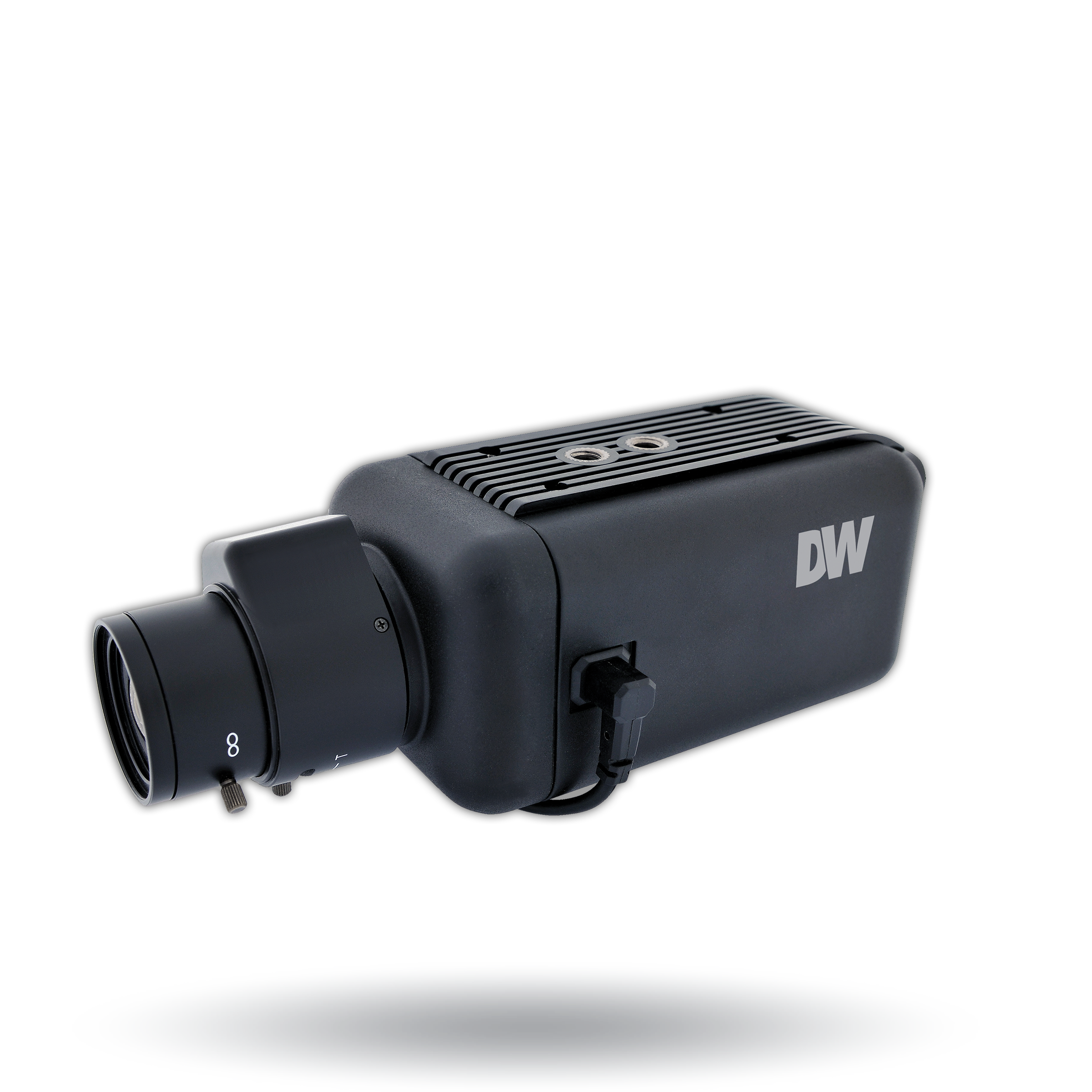

Digital Watchdog DWC-C223W Star-Light Universal HD Series, Box Camera,

Digital Watchdog DWC-C223W Star-Light Universal HD Series, Box Camera,

$307.00

Add to Wishlist

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
SKU: DIGITAL WATCHDOG:DWC-C223W Category:

Product Description

DWC-C223W: Star-Light™ Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.





Specifications


Image sensor
2.1MP/1080p 1/3″ CMOS
Active pixels
1944 (H) x 1092 (V)
Scanning system
Progressive scan
Frequency
60Hz / 50Hz
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization
Internal
Resolution
1920 x 1080 (1080p)
Minimum scene illumination
0.02 lux (color)
S/N ratio
55dB
Video output
HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H

I/O

Alarm output
1 alarm output

LENS

Lens type
C/CS mount lens compatible

OPERATIONAL

Shutter mode
Auto, manual, FLC
Shutter speed
1/30-1/30,000
Backlight
On, off
Star-Light (sense-up)
Off, x2 – x32
Wide dynamic range (WDR)
True WDR, off, on
Wide dynamic range (WDR) dB
100dB
Dynamic range compressor (DRC)
Off, low, middle, high
Smart DNR™ 3D digital noise reduction
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Day / night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Auto gain control
0~10
Motion detection
Yes
Privacy zones
16 programmable privacy zones
Sharpness
0 ~ 10
Gamma
0.45 ~ 0.75
De-fog
On, off
RS485 / UTP built-in
Pelco D / Pelco C

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
Other certifications
FCC, CE, ROHS

ELECTRICAL

Power requirement
DC12V/AC24V dual voltage
Power consumption
DC12V : 2.45W
AC24V : 2.4W

MECHANICAL

Material
Aluminum box housing
Dimensions
4.71″ x 2.31″ x 2.44″ (119.7 x 58.8 x 62 mm)
Weight
0.7lbs (0.32kg)

Additional Information

Weight10 lbs
Dimensions10 × 10 × 10 in
