Product Description

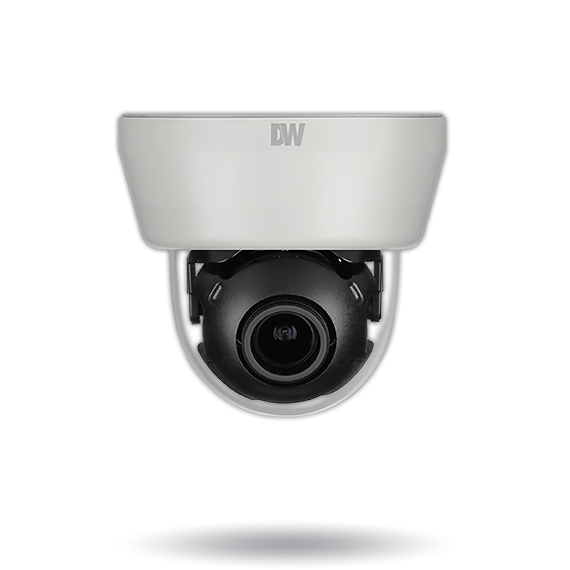

DWC-D4283WD: Star-Light™ Universal HD over COAX^® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Our unique Snapit™ housing makes installation a snap!. Star-Light™ Universal HD over Coax^® cameras are engineered to work with our VMAX A1™ Universal HD over Coax^® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.

Specifications

Image sensor	2.1MP/1080p 1/3″ CMOS
Active pixels	1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization	Internal
Resolution	1920 x 1080 (1080p)
Minimum scene illumination	0.3 lux (color)
S/N ratio	55dB
Video output	HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
I/O
Alarm output	1 alarm output
Audio input/output	1 built-in microphone
Audio sensitivity	-38dB ± 2dB
Audio frequency response	50Hz ~ 10KHz
LENS
Focal length	2.8 ~ 12mm
Lens type	Motorized zoom auto-focus p-iris lens
Field of view (FoV)	91 – 28°
OPERATIONAL
Shutter mode	Auto, manual, FLC
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x32
Wide dynamic range (WDR)	True WDR, off, on
Wide dynamic range (WDR) dB	100dB
Dynamic range compressor (DRC)	Off, low, middle, high
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto / auto-ex / preset / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	0~10
Motion detection	Yes
Privacy zones	16 programmable privacy zones
Sharpness	0 ~ 10
Gamma	0.45 ~ 0.75
De-fog	On, off
RS485 / UTP built-in	Pelco D / Pelco C
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/AC24V dual voltage
Power consumption	DC12V: 3.0W
	AC24V: 2.3W
MECHANICAL
Material	Snapit™ plastic housing, polycarbonate dome
Dimensions	4.24″ x 3.9″ (107.8 x 99.1 mm)
Weight	0.529 lbs (0.24kg)
