Product Description

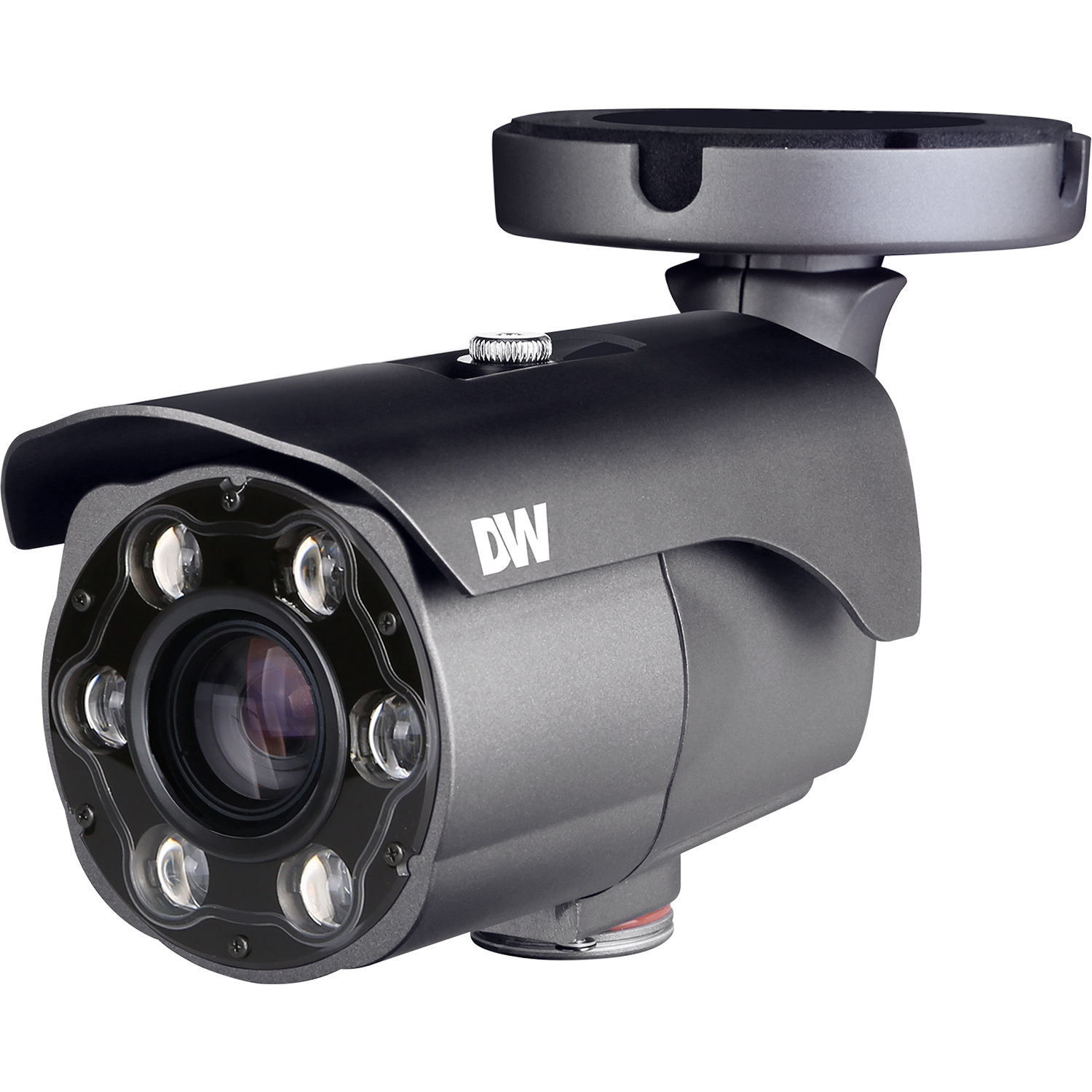

DWC-MB44LPRC1: MEGApix Weatherproof LPR Bullet, 4 Megapixel 1/3 Cmos Sensor @ 30fps, 6-50MM Varifocal Motorized Zoom with Autofocus P-Iris Lens, 60ft Smart IR, Dual Codecs (H.264,MJEPG), Smart DNR, AGC, AWB, Programmable Privacy Zones, Two Way Audio, Alarm Input, Relay Output, Web Server Built in, Cold Start -40F(-40C), Micro SD/SDHC/SDXC Class 10 Card Slot (card not included), OnVIF Profile S, IP66, PoE and 12VDC, 5 Year Warranty, Captures licenses plates up to 50mph with up to 60ft capture range. Note: DW Spectrum IPVMS pre loaded. Connect up to 30 CaaS cameras simultaneously in a single system. Built in 128GB memory for local recording. Dual recording option with Blackjack NAS.

Image sensor	4MP 1/3” CMOS
Total pixels	2688 (H) x 1520 (V)
Minimum scene illumination	0 lux (B&W)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
Resolution	4MP (2560 x 1440)
LENS
Focal length	6.0 ~ 50mm, F1.6
Lens type	Motorized zoom auto-focus p-iris lens
Field of view (FoV)	90° ~ 7.3°
IR distance	60ft range
Optical zoom	x8.3
OPERATIONAL
Image capture range	Up to 60’ and 50 MPH
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15~1/32000
Slow shutter	off, x2, x3, x5, x6, x7.5, x10
Auto gain control	Auto
Day / night	B/W mode only
Smart DNR™ 3D digital noise reduction	0~11
Privacy zone	16 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server, alarm output activation or SD card recording
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264, MJPEG
Resolution	H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280×720/800×600/VGA/768×432/D1/CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
Number of DW Spectrum® CaaS™ licenses included	1 DW Spectrum® CaaS™ license included
Local server recording	DWC-MB44LPRC2: 256GB local memory for recording DWC-MB44LPRC1: 128B local memory for recording DWC-MB44LPRC6: 64GB local memory for recording
Max. number of CaaS™ cameras in the same network/system	Up to 30 MEGApix® CaaS™ cameras in the same network/system
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66-rated weather and tamper-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	DC12V Max 11W PoE Max 12.9W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	9.73” x 3.8” (247.2 x 96.7mm). Dimensions based on the position of the sun shield cover
Weight	1.98 lbs (0.9kg)
