Product Description

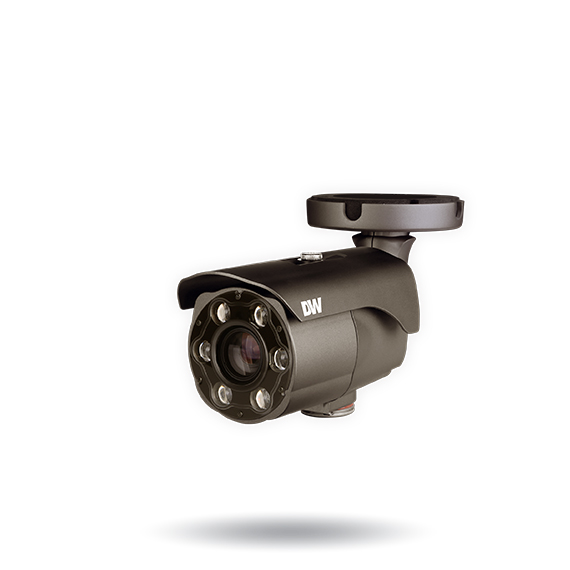

DWC-MB45Wi650T: This MEGApix^® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 6~50mm long range vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated weather resistant bullet housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Specifications

Image sensor	5MP 1/2.8” CMOS
Total pixels	2592 (H) × 1944 (V)
Minimum scene illumination	0.08 lux (color)
	0.0 lux (B/W)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
LENS
Focal length	6 ~ 50mm, F1.6
Lens type	Vari-focal p-iris lens with motorized-zoom and auto-focus
Field of view (FoV)	6.9° ~ 40.8°
IR distance	140ft range
Optical zoom	x8 optical zoom
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711
Alarm in / out	1 input / 1 output
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000
Slow shutter	1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR (T-WDR)
Wide dynamic range (WDR) dB	120dB
Privacy zones	16 programmable privacy masks
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP, alarm output activation and SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: 2592×1944, 2304×1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592×1944, 2304×1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800×600, VGA, 768×432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps  ~ 10Mbps, Multi-rate for Preview and Recording
Bitrate control	Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66-rated
IK rating	IK9 impact-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	DC12V: max 9W PoE: max 10.5W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	9.73” x 3.8” (247.2 x 96.7mm) *Dimensions based on the position of the sun shield cover
Weight	1.98 lbs (0.9kg)
Warranty	5 year warranty
