Product Description

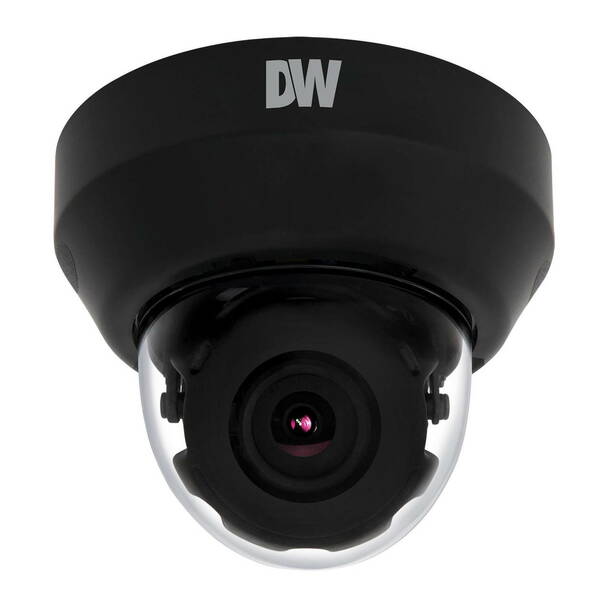

MEGApix Indoor Dome Black, ONVIF Compliant, 4 Megapixel (2560×1440 @ 30fps), Dual Codecs with Dual Stream, 1/3 CMOS Sensor, 2.8~12mm P-Iris Auto Focus Lens, 8X Digital Zoom, 4.2X Optical Zoom, Electronic Day and Night, Power over Ethernet [PoE] & DC12V, Two-Way Audio, Local SDHC Card Remote Backup, E-mail Event Notifications, Web Server Built-in, WDR (120dB), 3D-DNR (3D Digital Noise Reduction), Programmable Privacy Zones (4) & Motion Detection . 5 Year Warranty
IMAGE | ||
Image sensor | 4MP 1/3” CMOS | |
Total pixels | 2688 (H) x 1520 (V) | |
Minimum scene illumination | 0.2 lux (color) | |
Test Monitor Video Output | Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio | |
LENS | ||
Focal length | 2.8-12mm | |
Lens type | Motorized-zoom auto-focus p-iris lens | |
Field of view (FoV) | 87° ~ 32° | |
Optical zoom | x4.2 | |
I/O | ||
Audio in / out | 1 input / 1 output | |
Audio compression | G.711 | |
Alarm in / out | 1 input / 1 output | |
OPERATIONAL | ||
Shutter mode | Auto, manual, anti-flicker, slow shutter | |
Shutter speed | 1/30~1/32000 | |
Slow shutter | 1~1/5,1/7.5, 1/10 | |
Auto gain control | Auto | |
Day / night | Auto, day (color), night (B/W) | |
Smart DNR™ 3D digital noise reduction | 0~11 | |
Wide dynamic range (WDR) | True WDR off, WDR2x, WDR3x | |
Wide dynamic range (WDR) dB | 120dB | |
Privacy zone | 16 programmable privacy masks | |
Alarm notifications | Notifications via e-mail, FTP server, alarm output activation or SD card recording | |
Memory slot | Micro SD / SDHC / SDXC (card not included) | |
NETWORK | ||
LAN | 802.3 compliance 10/100 LAN | |
Video compression type | H.264, MJPEG | |
Resolution | H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280×720/800×600/VGA/768×432/D1/CIF | |
Frame rate | Up to 30fps at all resolutions | |
Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
Bitrate control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | |
Streaming capability | Dual-stream at different rates and resolutions | |
IP | IPv4 | |
Protocol | Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) | |
Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) | |
ONVIF conformance | Yes | |
Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) | |
Operating humidity | 10–90% RH (non–condensing) | |
Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) | |
Power consumption | DC12V: Max 6.4W PoE: Max 8W | |
MECHANICAL | ||
Material | Snapit™ plastic housing, polycarbonate dome | |
| Housing color | DWC-MD44WA: ivory DWC-MD44WiA: black | |
Dimensions | 4.72″ x 3.63″ (120 x 92.4 mm) | |
Weight | 0.66 lbs (0.3kg) | |
