Product Description

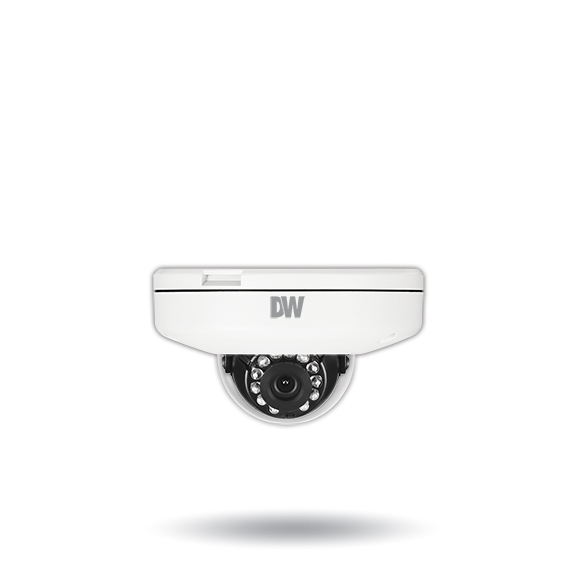

DWC-MF5Wi4TWDMP: MEGApix Flat Indoor/Outdoor Vandal Dome Camera, Star-Light Plus, 5 Megapixels, 1/2.8 Sensor, 4mm Fixed Lens, 50ft Range IR, T-WDR, Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Streaming, Alarm in/Relay out, OnVIF Compliant, True D&N, T-WDR, 3D-DNR, PoE + DC12V, IP66, IK10, 5 Year Warranty. NOTE: For use with DMP servers.

Image sensor	4MP 1/2.8” CMOS
Total pixels	2560 (H) x 1440 (V)
Minimum scene illumination	0.16 lux (color)
	0.0 lux (B/W)
LENS
Focal length	4.0mm, F2.0
Lens type	Fixed lens
Field of view (FoV)	82.3°
IR distance	50ft range
OPERATIONAL
Shutter mode	Auto
Shutter speed	1/15 ~ 1/32,000
Slow shutter	1/2
Auto gain control	Auto
Day / night	Auto
Smart DNR™ 3D digital noise reduction	3D DNR
Flip	Yes
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.264
Resolution	2560×1440, 2.1MP/1080p, VGA
Frame rate	10fps
Video bitrate	2Mbps
Bitrate control	Smart bitrate control – CVBR
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP
ONVIF conformance	Yes
Video management software	DMP®
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66-rated
IK rating	IK10 impact resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumption	DC12V: max 5.9W PoE: max 7.2W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.9″ x 2.9″ (125 x 74.3 mm)
Weight	0.92 lbs (0.42kg)
Warranty	5 year warranty
