Digital Watchdog DWC-MPTZ336XW 3MP PTZ IP camera with 4.6~165.6mm vari-focal lens with motorized zoom and auto-focus and 36x optical zoom and IR
Digital Watchdog DWC-MPTZ336XW 3MP PTZ IP camera with 4.6~165.6mm vari-focal lens with motorized zoom and auto-focus and 36x optical zoom and IR
$3,277.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description

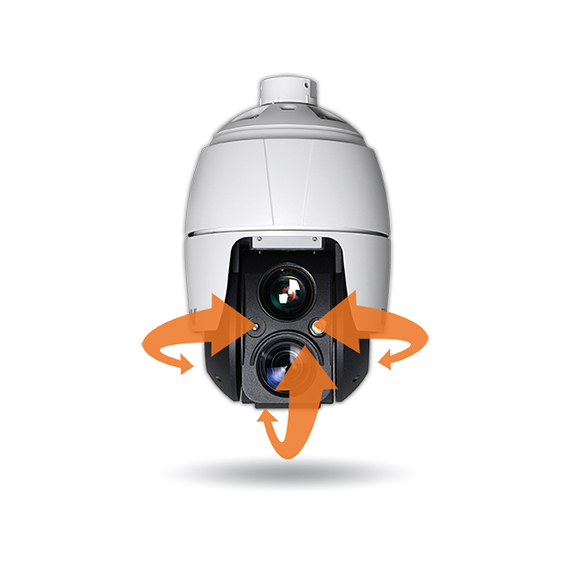

DWC-MPTZ336XW: The MEGApix® 36x PTZ camera delivers crystal-clear 3MP resolution at real-time 30fps. The camera is powered by Star-Light Plus™ technology for outstanding color in near-total darkness. Features include 36x optical zoom and Smart IR™ up to 1148ft (350m) in an IP66-rated, IK-10 impact-resistant vandal housing. A wall mount and ceiling mount are sold separately and are required to complete the camera’s installation.
Specifications
IMAGE | ||
Image sensor | 3MP 1/2.8” CMOS sensor | |
Total pixels / active pixels | 2065 (H) x 1565 (V) / 2048 (H) x 1536 (V) | |
Minimum scene illumination | 0.35 lux (color) | |
0.0 lux (B/W) | ||
LENS | ||
Focal length | 4.6 ~ 165.6mm | |
Lens type | Vari-focal lens with motorized zoom and auto-focus | |
IR distance | 1148 range | |
Angle of view | 58.1° ~ 1.9° | |
Digital zoom / zoom | 36x optical zoom | |
I/O | ||
Audio input / output | 1 input / 1 output | |
Audio compression | G.711 | |
| Audio alert | User-defined 3 audio files | |
Alarm input/ output | 4 inputs / 1 output | |
| Manual triggers | 4 programmable triggers | |
OPERATIONAL | ||
Shutter mode | Auto, manual, flicker-free mode | |
Shutter speed | 1/10,000 ~ x 1sec. | |
Backlight | Yes | |
De-fog | Yes | |
Wide dynamic range (WDR) | True WDR, off, low, middle, high | |
Wide dynamic range (WDR) dB | 120dB | |
Smart DNR™ 3D digital noise reduction | 2DNR, 3DNR | |
White balance | Auto, manual | |
Day and night | Auto, day (color), night (B/W) | |
Mirror / flip | Yes | |
Privacy zones | 16 programmable privacy masks | |
| Motion detection | 16 programmable motion zones (8 include areas and 8 exclude areas) | |
| Memory slot | Micro SD/SDHC/SDXC card (not included). | |
| SD card recording mode | Event and continuous recording | |
| Event buffering – FTP | Pre: 30 seconds, post: 30 seconds | |
| Event buffering – SD card | Pre: 10 seconds, post: 60 seconds | |
Alarm notifications | Notifications via e-mail, FTP server, alarm output activation, audio output activation, preset activation, notification server, XML notifications or SD card recording. | |
PTZ FUNCTION | ||
Pan range | 360° endless | |
Pan speed | Max. 380°/sec. (preset) | |
Tilt range | -10~190° | |
Tilt speed | Max. 380°/sec. (preset) | |
Auto calibration | 0.1~6° | |
Preset | 256 | |
Tour | 8 | |
Pattern | 8 | |
Home function | Yes | |
NETWORK | ||
LAN | RJ-45 (10/100Base-T) | |
Video compression type | H.265 (main profile), H.264 (baseline, main, high profile), MJPEG | |
Resolution | 2048×1536, 1920×1080, 1440×1080, 1280×1024/720, 1024×768, 800×600/480, D1, 640×480, 400×240, CIF | |
Video bitrate | 100Kbps ~ 8Mbps, multi-rate for preview and recording | |
Frame rate | Up to 30fps at all resolutions | |
Streaming capability | Quad-stream (H.265×3, H.265×1, MJPGx1) | |
| Bitrate control | Multi-streaming CVBR/VBR at H.265, H.264 (controllable framerate and bandwidth) | |
IP | IPv4, IPv6 | |
Protocol | TCP/IP, UDP, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour | |
Security | Password authentication, multi-user authority, IP filtering, HTTPS (TLS) | |
Maximum user access | Live: 10 users, playback: 3 users | |
ONVIF conformance | Yes | |
Web viewer | OS: Windows®, MAC® OS, Linux® | |
Browser: Internet Explorer® | ||
Network time sync | NTP server, synchronized computer, manual | |
| Software reset | Restart, reset, factory default | |
| Remote upgrade | Bakup and restore | |
ENVIRONMENTAL | ||
Operating temperature | -22°F ~ 131°F (-30°C ~ 55°C ) | |
Operating humidity | 0–90% RH (non–condensing) | |
IP rating | IP66-rated | |
| IK rating | IK-10 impact-resistant | |
Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
Power requirement | DC 12V, PoE (UPoE, Class4), PoE injector included | |
Power consumption | PoE: 28W, 500mA DC 12V: 28W, 2.3A | |
MECHANICAL | ||
Material | Aluminum PTZ, polycarbonate dome | |
Dimensions | 7.94 x 12.51 Inch (201.8 x 317.8 mm) | |
Weight | 11.24 lb (5.1kg) | |
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
