Product Description

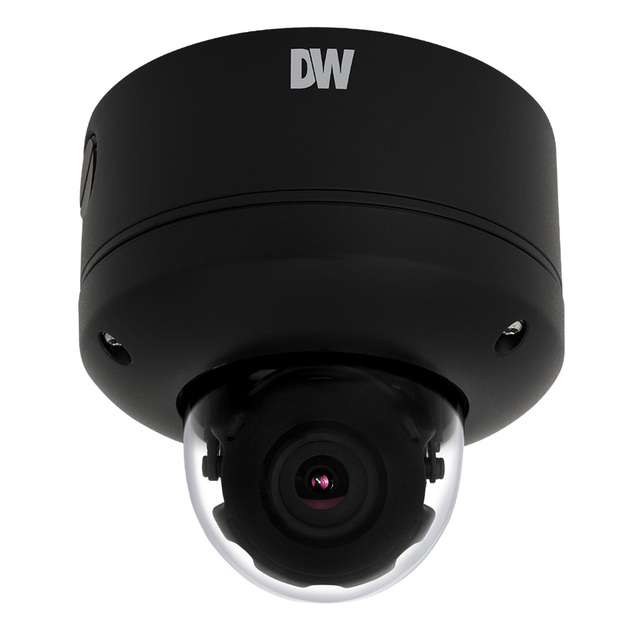

MEGApix Indoor/Outdoor Vandal Dome Black, ONVIF Compliant, 4 Megapixel (2560×1440, 30fps), 2.8-12mm Autofocus Varifocal P-Iris Lens, Dual Codecs (H.264, MJPEG) with Dual Stream, 1/3 CMOS Sensor, , 4.2X Optical Zoom, Electronic Day and Night, Power over Ethernet [PoE] & DC12V, Two-Way Audio, Local SDHC Card Remote Backup, E-mail Event Notifications, IP68 Certified, Junction Box Built-in, Web Server Built-in, WDR (120dB), 3D-DNR (3D Digital Noise Reduction), Programmable Privacy Zones (4) & Motion Detection. 5 Year Warranty. CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease.

Image sensor	4MP 1/3” CMOS
Total pixels	2688 (H) x 1520 (V)
Minimum scene illumination	0.2 lux (color)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio
LENS
Focal length	2.8-12mm
Lens type	Motorized-zoom auto-focus p-iris lens
Field of view (FoV)	87° ~ 32°
Optical zoom	x4.2
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711A / U
Alarm in / out	1 input / 1 output
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30~1/32000
Slow shutter	1~1/5,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0~11
Wide dynamic range (WDR)	True WDR off, WDR2x, WDR3x
Wide dynamic range (WDR) dB	120dB
Privacy zone	16 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server, alarm output activation or SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264, MJPEG
Resolution	H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280×720/800×600/VGA/768×432/D1/CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP68 certified
IK rating	IK10 rated impact resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE (IEEE 802.3af Class 3). Adaptor not Included.
Power consumption	DC12V: Max 6.4W PoE: Max 8W
MECHANICAL
Material	Snapit™ aluminum vandal housing, polycarbonate dome
Dimensions	5.47″ x 4.93″ (139 x 125.4 mm)
Weight	2.75 lbs (1.25kg)
