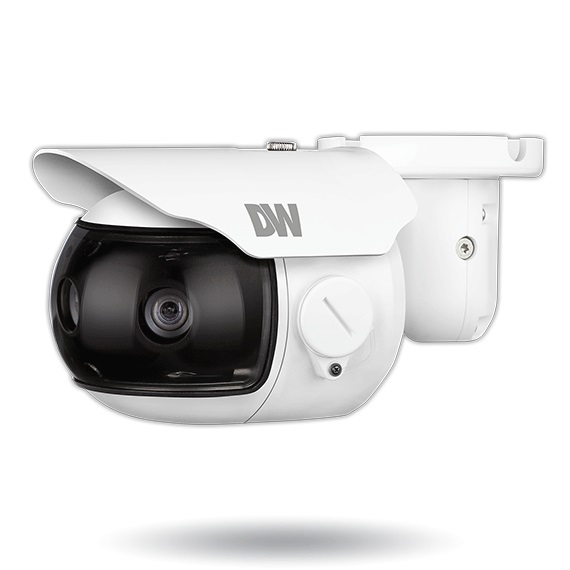

Digital Watchdog DWC-PB753WTW 6MP user-configurable multi-sensor bullet camera with 4.3mm fixed lenses
Digital Watchdog DWC-PB753WTW 6MP user-configurable multi-sensor bullet camera with 4.3mm fixed lenses
$1,595.00
Out of stock
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
DWC-PB753WTW: STAR-LIGHT PANO Cameras use three 2MP CMOS sensors and three 4.3mm fixed lenses to produce stunning 180° views at up to 30fps when placed side by side in a CMS. DW® AHD cameras are engineered to work with VMAX A1™ All-in-One DVRs that record 1080p AHD, TVI and all analog to 960H. AHD provides an easy system upgrade to high definition video.
Important Note: The camera requires a DVR that supports HD over Coax protocols, like the VMAX A1.
Specifications
IMAGE | |
Image sensor | 3x 2.1MP 1/3” CMOS |
Active pixels | 3X 1944 (H) x 1092 (V) |
Scanning system | Progressive scan |
Frequency | 60Hz / 50Hz |
Signal technology | HD over Coax® technology with HD-Analog and all analog to 960H signal support |
Synchronization | Internal |
Resolution | 6 megapixel (3x 1920×1080 Sensors) |
Minimum scene illumination | 0.06 lux (Color) |
0.01 lux (B&W) | |
S/N ratio | 55dB |
Video output | HD-Analog 6MP (3x 1080p at 30fps + 4ch / 180° panoramic view) |
Alarm output | 3 alarm outputs |
LENS | |
Focal length | 4.3mm |
Lens type | Fixed lens |
OPERATIONAL | |
Operational | x3 (below specs per sensor) |
Shutter speed | 1/30-1/30,000 |
Backlight | On, off |
Star-Light (sense-up) | Off, x2 – x32 |
Wide dynamic range (WDR) | True WDR, On, Off |
| Wide Dynamic Range (WDR) dB | 100dB |
Digital noise reduction (DNR) | Off, low, middle, high |
White balance | Auto / auto-ex / preset / manual |
Day / night | Auto, day (color), night (B/W) |
Mirror / flip | Yes |
Auto gain control | Max 60dB |
Motion detection | 3 zones per camera, total 12 motion zones |
Privacy zones | 16 privacy zones per camera, total 72 privacy zones |
Sharpness | 0 ~ 10 |
Gamma | 0.5 |
RS485 / UTP built-in | Pelco D / A-PC |
ENVIRONMENTAL | |
Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
Operating humidity | 10–90% RH (non–condensing) |
IP rating | IP66 certified weather and tamper resistant |
Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
Power requirement | DC12V/AC24V dual voltage |
Power consumption | DC12V: 8.5W, 708mA |
AC24V: 8.5W, 354mA | |
MECHANICAL | |
Material | Aluminum bullet housing |
Dimensions | 9.9″ x 3.58″ (252 x 91 mm) |
Weight | 2.2 lbs (1.0 kg) |
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
