Product Description

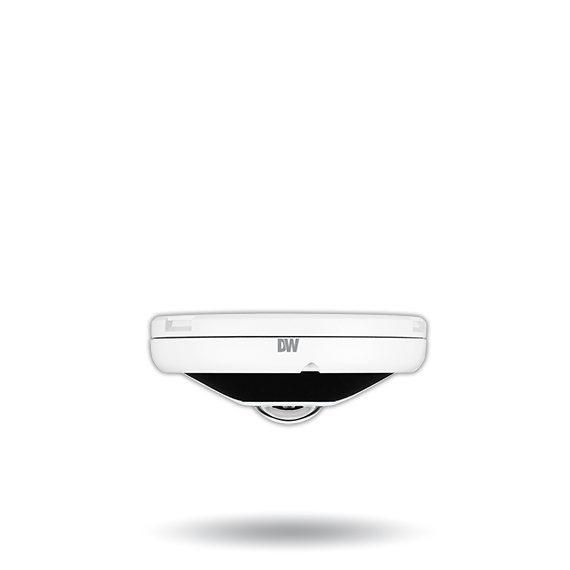

DWC-PPVF9Di2TW: This MEGApix^® IVA+™ 9MP 360° view fisheye outdoor IP camera with IR is your gateway to powerful video analytics features. It is NDAA compliant and can monitor an entire area, providing ultimate ROI. The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera’s 2.1mm fisheye lens provides edge-to-edge image clarity producing 9MP panoramic images at real-time 30fps. Star-Light Plus™ color in near-total darkness technology ensures quality video in any lighting condition. The camera also offers simultaneous H.265/H.264/MJPEG codec support in an IP66 vandal-resistant, discrete housing. The camera is optimized to work with the DW Spectrum® IPVMS instant dewarping feature.

Specifications

Image sensor	12.4MP 1/1.7″ Star-Light Plus CMOS
Total pixels	4000(H) X 3000(V)
Minimum scene illumination	0.3 lux (color)
	0 lux (B/W)
S/N ratio	50dB
Maximum resolution	9MP (3008 x 3000)
LENS
Focal length	2.1mm, F2.2
Lens type	Fisheye lens
HFoV / VFoV	185° / 185°
IR distance	80ft range
I/O
Audio in / out	1 input / 1 output
Alarm In/Out	1 input / 1 output
Audio compression	G.711
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000sec
Slow shutter	Off, x2, x3, x5, x6, x7.5, x10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Backlight compensation (BLC)	Yes
White balance	Yes
Mirror and flip	Yes
Privacy zones	16 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server, alarm output activation or SD card recording
Memory slot	Micro SD/SDHC/SDXC (card not included).
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: 3008×3000, 2800×2800, 2048×2048, 1600×1600, 640×640, 320×320 H.264: 3008×3000, 2800×2800, 2048×2048, 1600×1600, 640×640, 320×320 MJPEG: 1280×1280, 640×640, 320×320
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps
Bitrate control	Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security	HTTPS(TLS),  IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® NOTE: Chrome browser is recommended for IVA configuration.
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	Less than 90% (non-condensing)
IP rating	IP66-rated weather and tamper-resistant
IK rating	IK9 impact-resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not included)
Power consumption	DC12V: max 8.5W PoE: max 10W
MECHANICAL
Material	Aluminum vandal fisheye housing, polycarbonate dome
Dimensions	4.9″ x 1.88” (125 x 48mm)
Weight	1.1 lbs (0.5kg)
Warranty	5 year warranty
