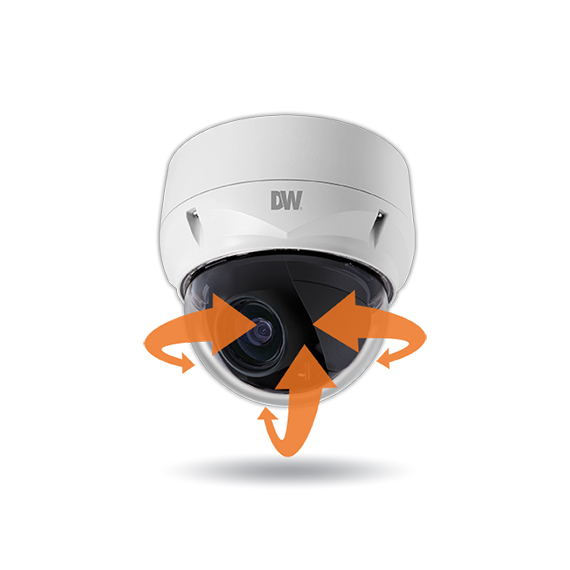

Digital Watchdog DWC-PTZ220XW 2.1MP/1080p PTZ camera with 4.7~94mm motorized zoom PTZ lens and 20x optical zoom
Digital Watchdog DWC-PTZ220XW 2.1MP/1080p PTZ camera with 4.7~94mm motorized zoom PTZ lens and 20x optical zoom
$1,399.00
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /var/www/vhosts/zeniarkmt.com/gss.zeniarkmt.com/gss_dev/orders/wp-content/themes/avano/woocommerce/single-product/meta.php on line 26
Product Description
DWC-PTZ220XW: Star-Light™ 2.1MP/1080p HD over Coax® 20x PTZ cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI and all analog signals to 960H. The camera features 20x optical zoom and 16x digital zoom, 0~360° endless pan in an IP66 weather-resistant dome housing. A wall mount and ceiling mount are available, sold separately and necessary to complete the camera’s installation. Star-Light™ Universal HD over Coax cameras are engineered to work with our VMAX® A1 Plus™ Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high-resolution surveillance solution.
Specifications
IMAGE | ||
Image sensor | 2.1MP/1080p 1/2.8” CMOS sensor | |
Total pixels / active pixels | 1945 (H) x 1097 (V) | |
Scanning system | Progressive scan | |
Synchronization | Internal | |
Resolution | HD-TVI: 2.1MP/1080p at 30fps, 720p at 30/60fps | |
HD-Analog: 2.1MP/1080p at 30fps | ||
CVBS: 720 x 480 at 30fps | ||
Minimum scene illumination | 0.35 lux (color) | |
0.013 lux (B&W) | ||
LENS | ||
Focal length | 4.7~94mm, F1.6 | |
Lens type | Vari-focal lens with motorized zoom and auto-focus | |
Angle of view | 55.5 ~ 3° | |
Digital zoom / zoom | 20x optical zoom, 16x digital zoom | |
I/O | ||
Alarm input/ output | 4 inputs / 1 output | |
OPERATIONAL | ||
Shutter mode | Auto, manual | |
Shutter speed | 30fps: Auto (1/30,000 ~ x8 sec.), manual 60fps: Auto (1/50,000 ~ x8 sec.), manual | |
Backlight | Yes | |
De-fog | Yes | |
Wide dynamic range (WDR) | True WDR, on, off, night off | |
Wide dynamic range (WDR) dB | 100dB | |
| Digital image stabilizer (DIS) | Yes | |
Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
White balance | Auto, fluorescent, incandescent, outdoor, manual | |
Day and night | Auto, day (color), night (B/W) | |
Mirror / flip | Yes | |
Privacy zones | 16 programmable privacy masks | |
PTZ FUNCTION | ||
Pan range | 360° endless | |
Pan speed | Max. 380°/sec. (preset) | |
Tilt range | -10~190° | |
Tilt speed | Max. 380°/sec. (preset) | |
Auto calibration | 0.1~6° | |
Preset | 240 | |
Tour | 8 | |
Pattern | 8 | |
Home function | Yes | |
ID (camera address) | 1~3999 | |
Control | RS-485, baud rate : 2,400 ~ 38,400bps (default : 9,600bps) | |
ENVIRONMENTAL | ||
Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
Operating humidity | 0–90% RH (non–condensing) | |
| IK rating | IK-10 impact-resistant | |
IP rating | IP66- rated weather and tamper-resistant | |
Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
Power requirement | 12VDC, 24VAC | |
Power consumption | Max. 12W, 1A @ 12VDC, 24VAC | |
MECHANICAL | ||
Material | Aluminum PTZ, polycarbonate dome | |
Dimensions | 6.06 x 5.9 in (154 x 150 mm) | |
Weight | Approx. 3.5 lbs (1.6kg) | |
Additional Information
| Weight | 10 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
