Product Description

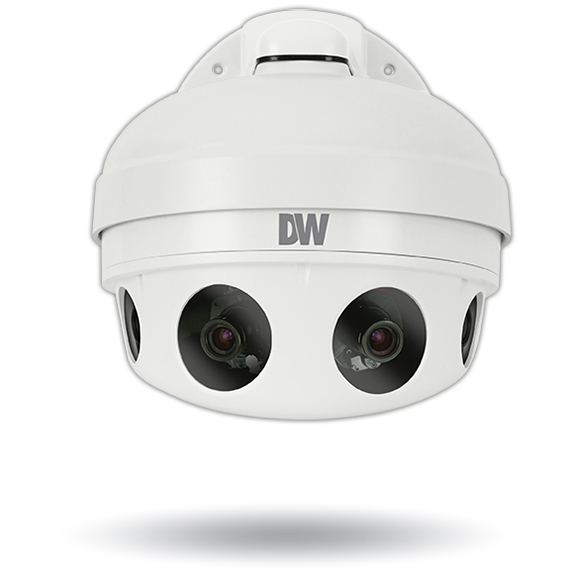

DWC-PZ21M69T: The MEGApix® Pano™ 21MP multi-sensor IP vandal camera produces 180° views at real-time 30fps. The camera supports advanced features such as H.264 codec and Smart DNR™ in an aluminum vandal housing with zero distortion antireflective glass. The 21MP camera does the work of many cameras from one installation, delivering both unprecedented wide views and details.

Specifications

Image sensor	4x 1/1.8″ CMOS
Total pixels	3096(H) X 2080(V)
Minimum scene illumination	0.16 lux (color)
S/N ratio	50dB
Maximum resolution	21MP (4×5.3MP)
LENS
Focal length	4x 8.0mm, F1.6
Lens type	Fixed lens
Field of view (FoV)	Over 180°
I/0
Audio in / out	1 (1.0Vms, 3K ohm) / 1
Alarm in / out	1/1
Audio compression	G.711
OPERATIONAL
Shutter mode	Auto, Manual, Anti-Flicker, Slow Shutter
Shutter speed	1/15 ~ 1/32000
Slow Shutter	1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	Yes
Backlight compensation (BLC)	Yes
Privacy zones	16 programmable privacy masks
Alarm notifications	Notifications via e-mail notifications, FTP, alarm output, SD card recording
Memory slot	Micro SD/SDHC/SDXC class 10 card (card not included)
NETWORK
LAN	100/1000Base-T(1Gbps)
Video compression type	H.264, MJPEG
Resolution	H.264: 3072×1728/1080p/720p/640×360/512×288/384×216 MJPEG: 384×216 / 352×288 / 352×240
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming Capability	3072x1728p30 + 640x360p7 with H.264 and MJPEG (up to 16 streaming)
IP	IPv4
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	Less than 80% RH, (non–condensing)
IP rating	IP66 certified weather and tamper-resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3at PoE+ class 4 (High power PoE injector included)
Power consumption	DC12V: 21.5W PoE IEEE802.3at Class4: 23.2W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate lens cover
Dimensions	7.55″ x 4.25″ (192 x 108mm)
Weight	4.4 lbs (2kg)
Warranty	5 years
