Product Description

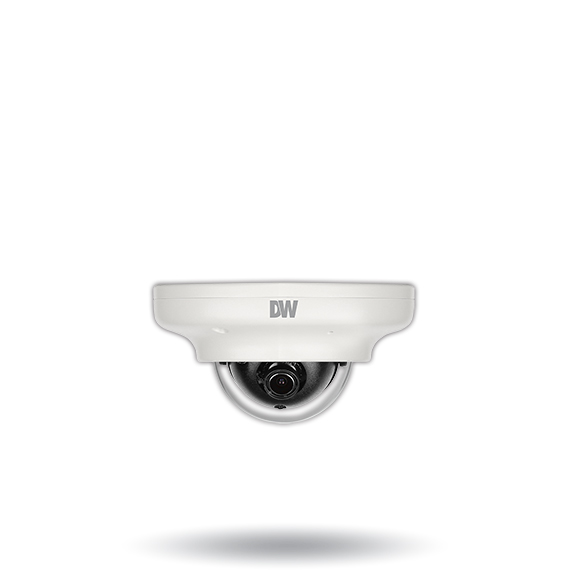

DWC-V7553W: Featuring Star-Light Plus™ color in near-total darkness, 5MP Star-Light Plus™ Universal HD over Coax^® cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The ultra low-profile weather-resistant vandal dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW^® Universal HD over Coax^® cameras are engineered to work with our VMAX^® A1 Plus™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.

Specifications

Image sensor	5MP 1/2.8″ CMOS
Active pixels	2608 (H) x 1960 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
Synchronization	Internal
Resolution	2592 x 1944 (5MP)
Minimum scene illumination	0.13 lux (color)
S/N ratio	55dB
Video output	HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps
2nd video output	CVBS output for video testing
LENS
Focal length	2.8mm
Lens type	Fixed lens
Field of view (FoV)	103°
OPERATIONAL
Shutter mode	Auto
Shutter speed	1/30-1/30,000
Backlight	Yes
Star-Light (sense-up)	Off – x32
Wide dynamic range (WDR)	True WDR, off, on
Wide dynamic range (WDR) dB	120dB
Smart DNR™ 3D digital noise reduction	3D/2D DNR
White balance	Yes
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	Max 72dB
Motion detection	Yes
Privacy zones	Yes
Sharpness	Yes
Gamma	0.45
De-fog	Yes
RS485 / UTP built-in	UTC
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 environmental-rated dust-tight and water-resistant
IK rating	IK 10-rated impact-resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V only
Power consumption	DC12V: 2W DC12V
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.13″ x 2.38″ (105 x 60.7mm)
Weight	0.88 lbs (0.4kg)
